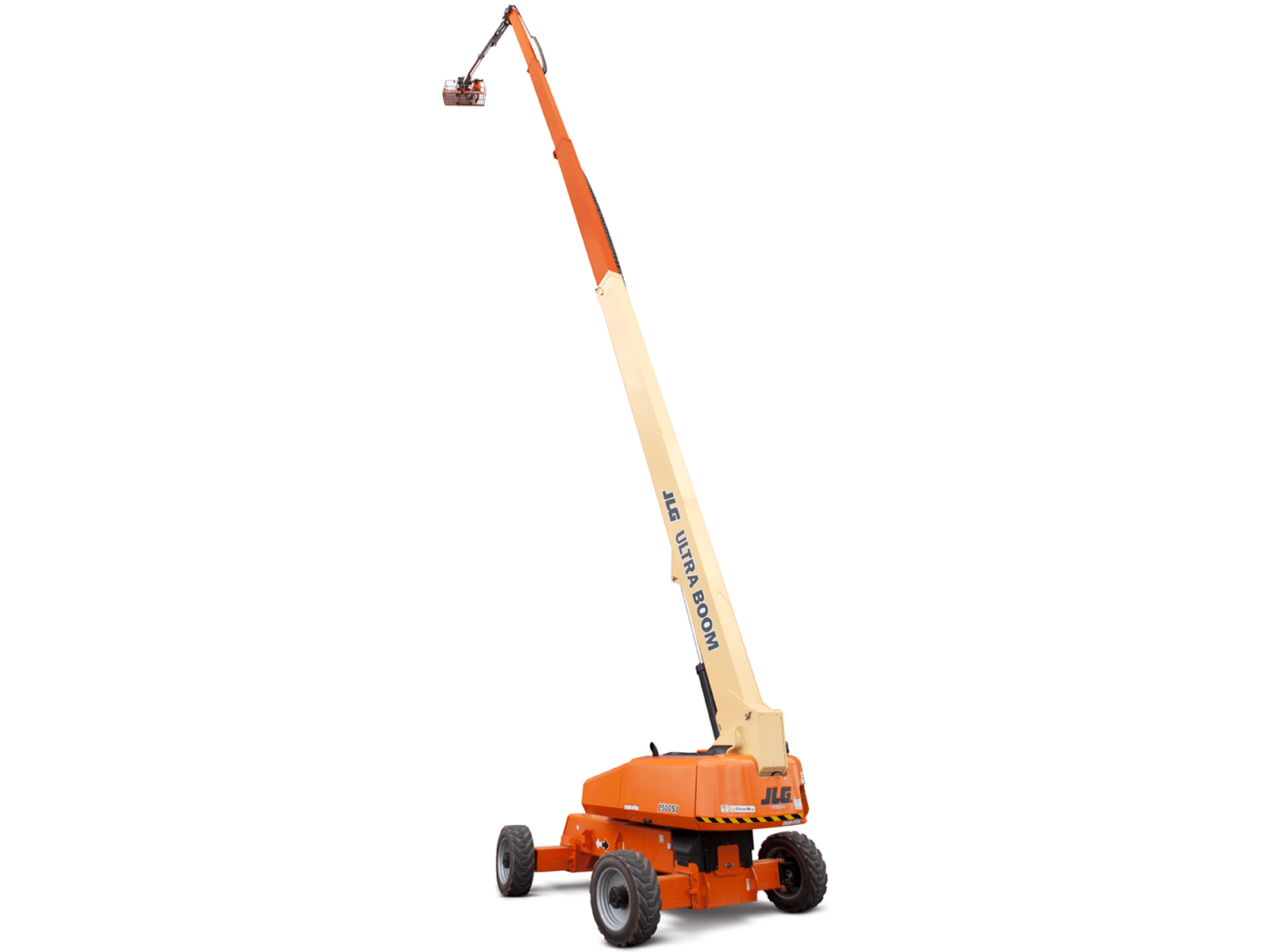

1500SJ

JLG

Location:

Unit:

Price: Contact for price

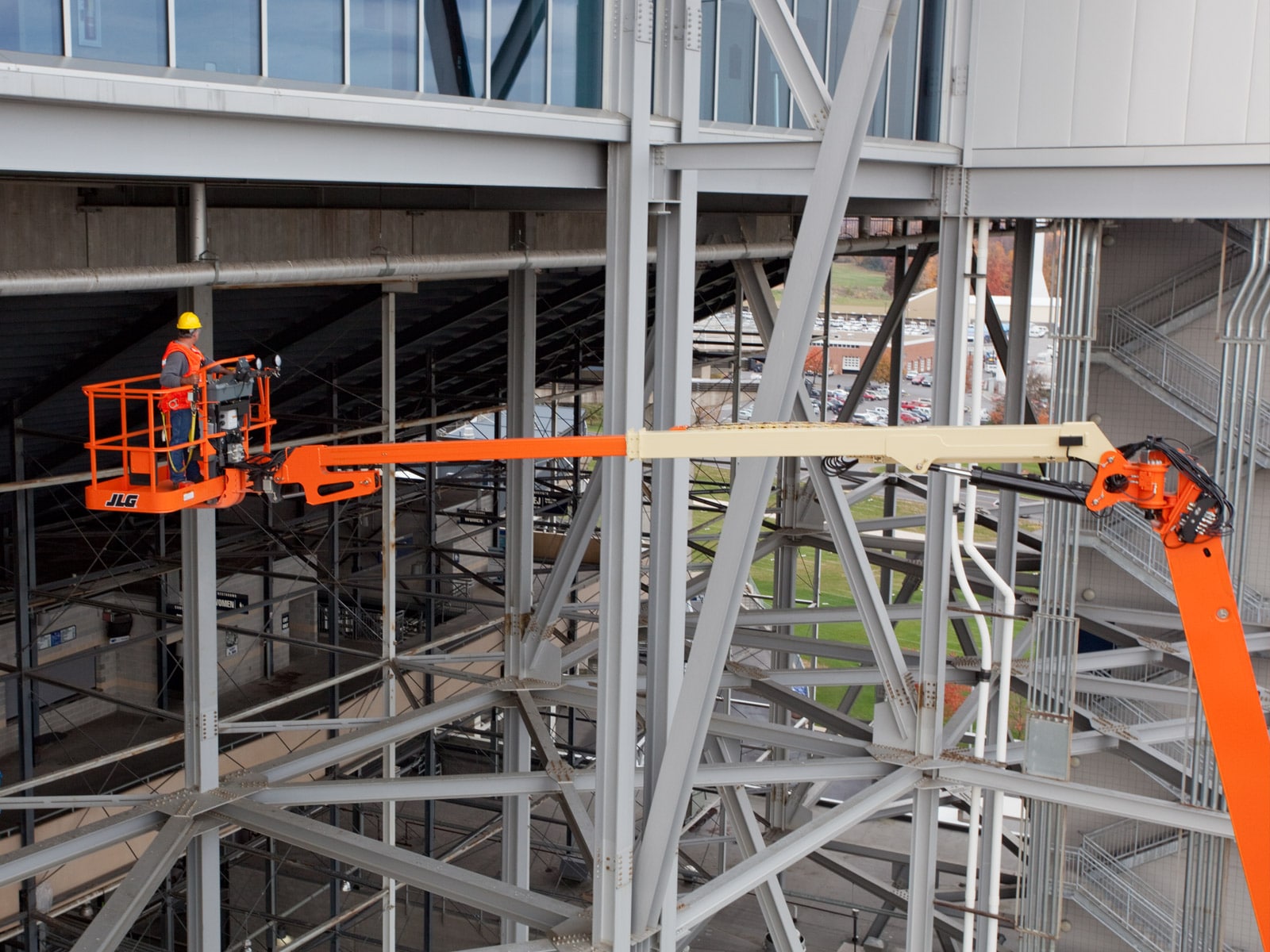

Telescoping jib provides work envelope flexibility and even more outreach at elevation.

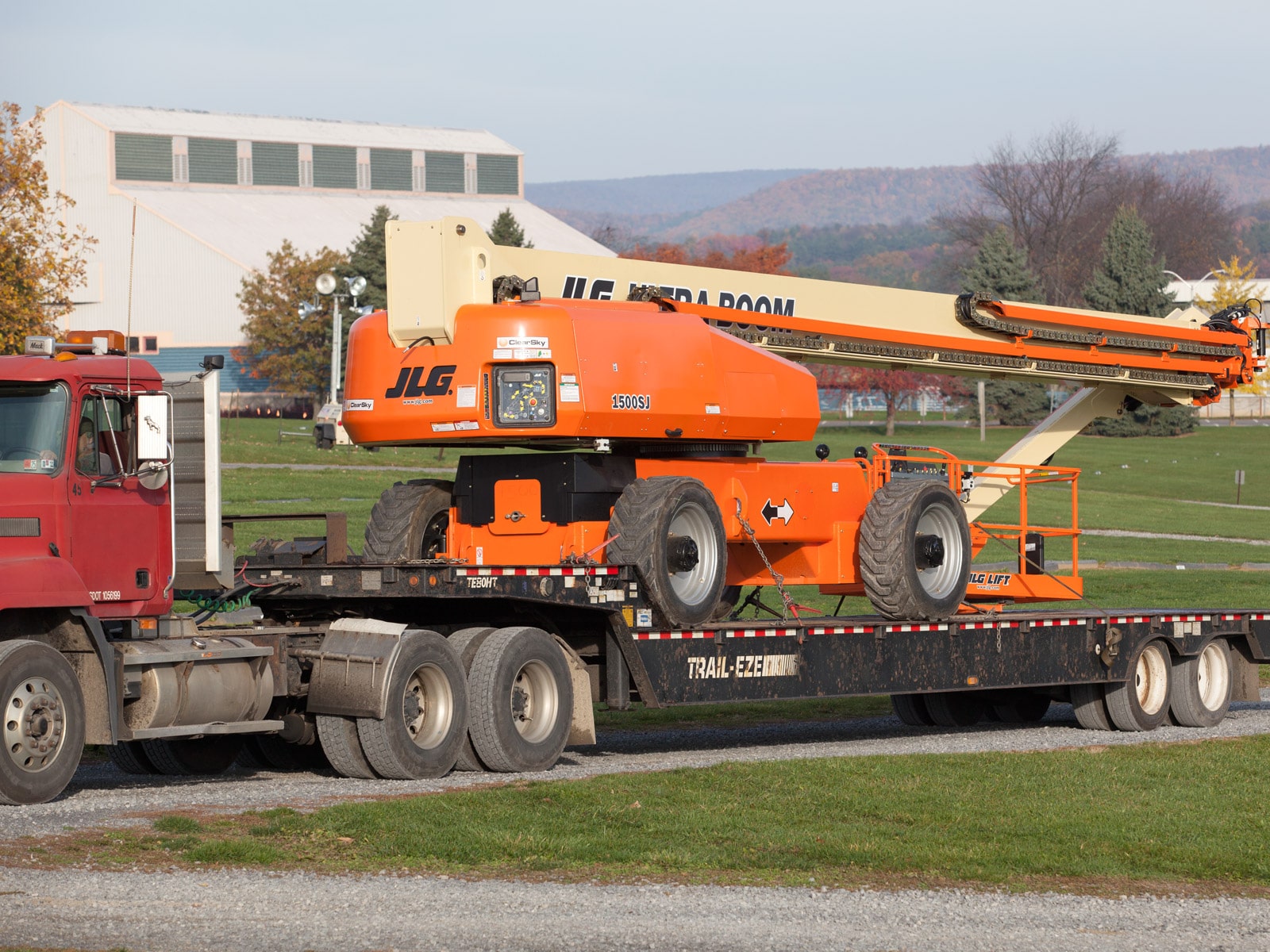

Ease of transport — no oversized load permit needed (over weight permit is required for highway transportation).
Strong 100,000-psi steel and a dual 1,000 / 500 lb capacity.

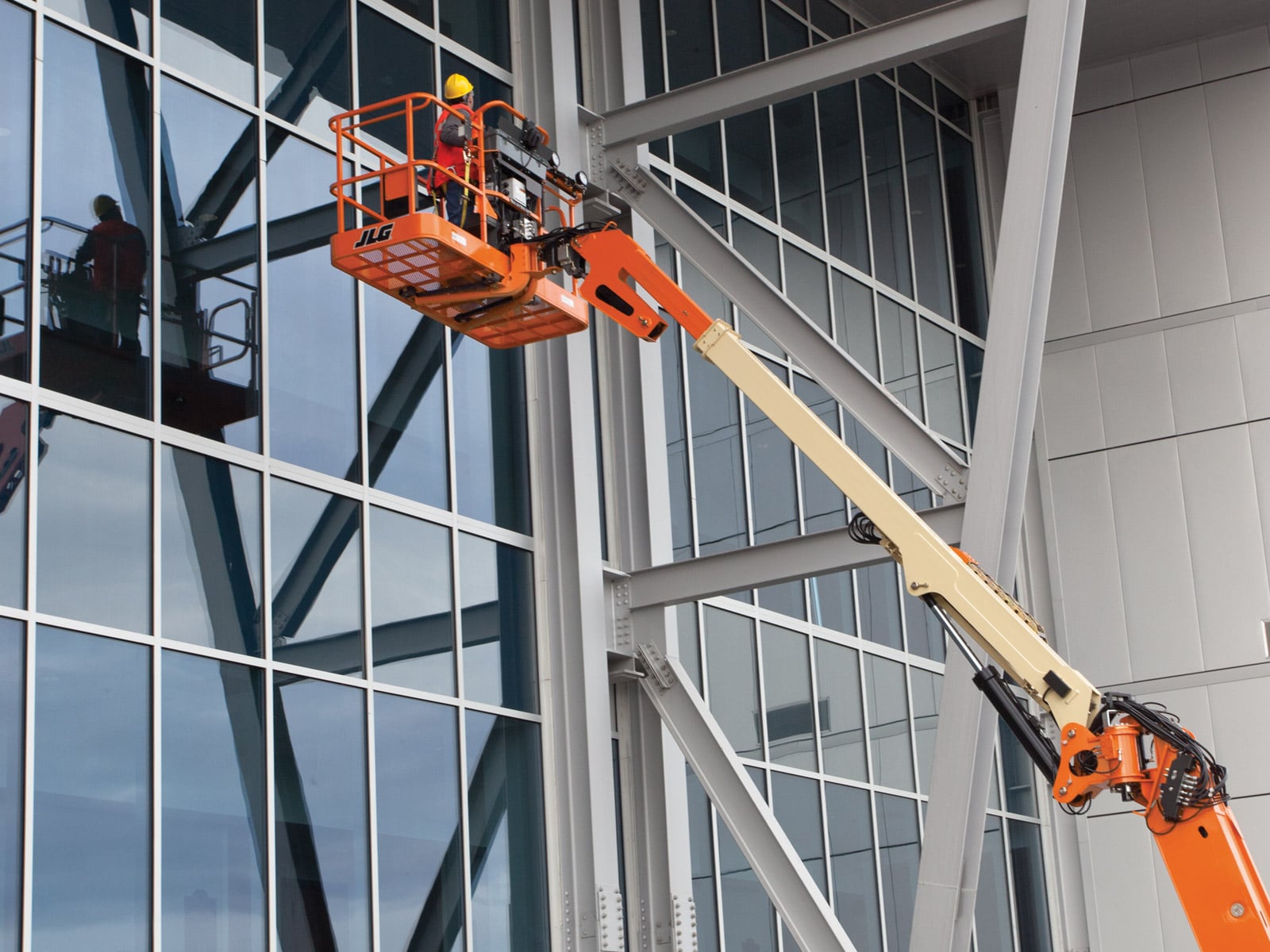

Ideal for general contractors, glaziers, window cleaners, welders and more.

Capacity

500lbs

Load Weight

Max Lift Height

Power

Environment

Primary Task

Industry

Model Year

Truck Type

Meter

Upright Lift / Lower Height

Upright Type

Attachments

Valve Type

Fork Length

Tire Type

Seat Type

Battery Condition

Transmission

Phases

Platform Dimension A	3 ft / 0.91 m
Tire Size	445/500710 Foam-Filled
Machine Weight	48000 lb / 21772.43 kg
Turning Radius – Outside (axles extended)	19 ft 4 in. / 5.89 m
Ground Clearance	1 ft / 0.3 m
Jib – Range of articulation	120 Degrees
Platform Height	150 ft / 45.72 m
Overall Width (Axles Extended)	12 ft 6 in. / 3.81 m
Machine Length	61 ft 9 in. / 18.81 m
Drive Speed – 4WD	3 mph / 4.83 km/h
Machine Width	8 ft 2 in. / 2.49 m
Auxiliary Power	12 Volts DC
Tailswing	5 ft 6 in. / 1.68 m
Platform Capacity – Restricted	1000 lb / 453.59 kg
Turning Radius – Outside (axles retracted)	22 ft 6 in. / 6.86 m
Swing Type	Continuous
Capacity – Hydraulic Reservoir	55 gal. / 208.20 L
Capacity – Fuel Tank	31 gal. / 117.35 L
Swing	360 Degrees
Engine Type – Diesel	DEUTZ TCD2.9L4 Tier 4 Final 74.2 hp
Gradeability – 4WD	40 %
Transport Length	43 ft / 13.11 m
Machine Height	10 ft / 3.05 m
Horizontal Outreach	80 ft / 24.38 m
Horizontal Jib Rotation	0 Degrees
Maximum Ground Bearing Pressure	113 psi / 7.91 Kg/cm2
Platform Dimension B	8 ft / 2.44 m
