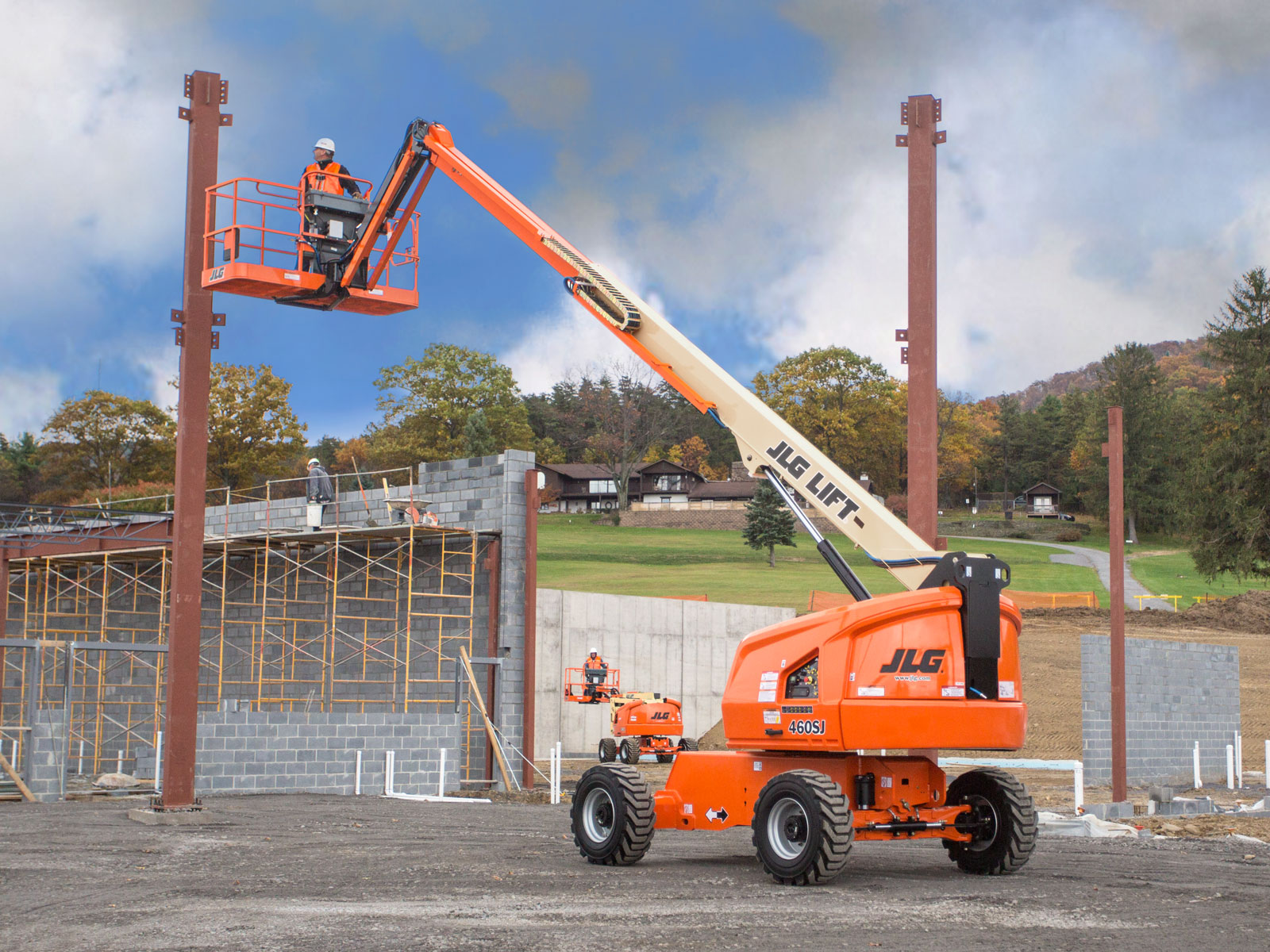

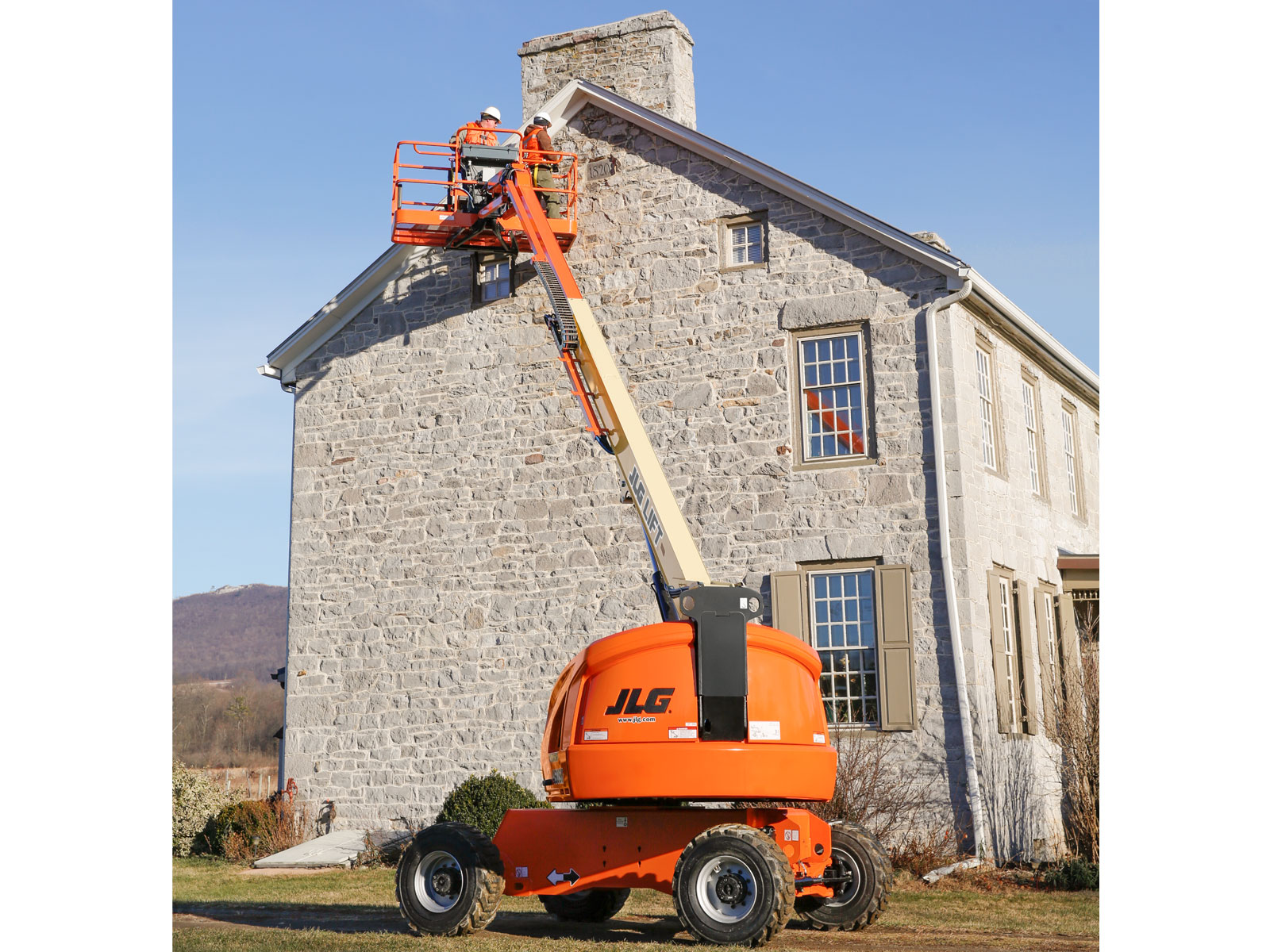

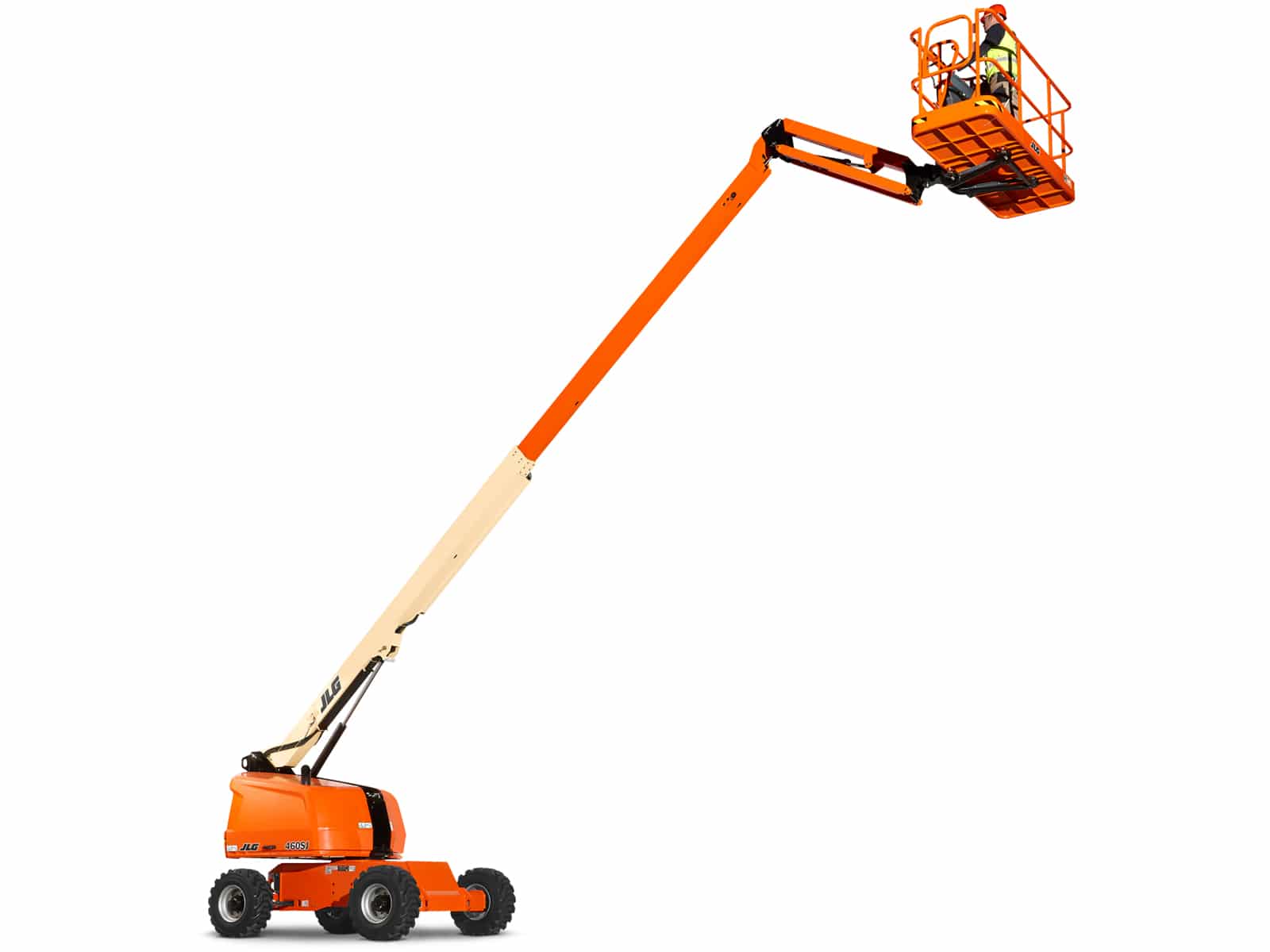

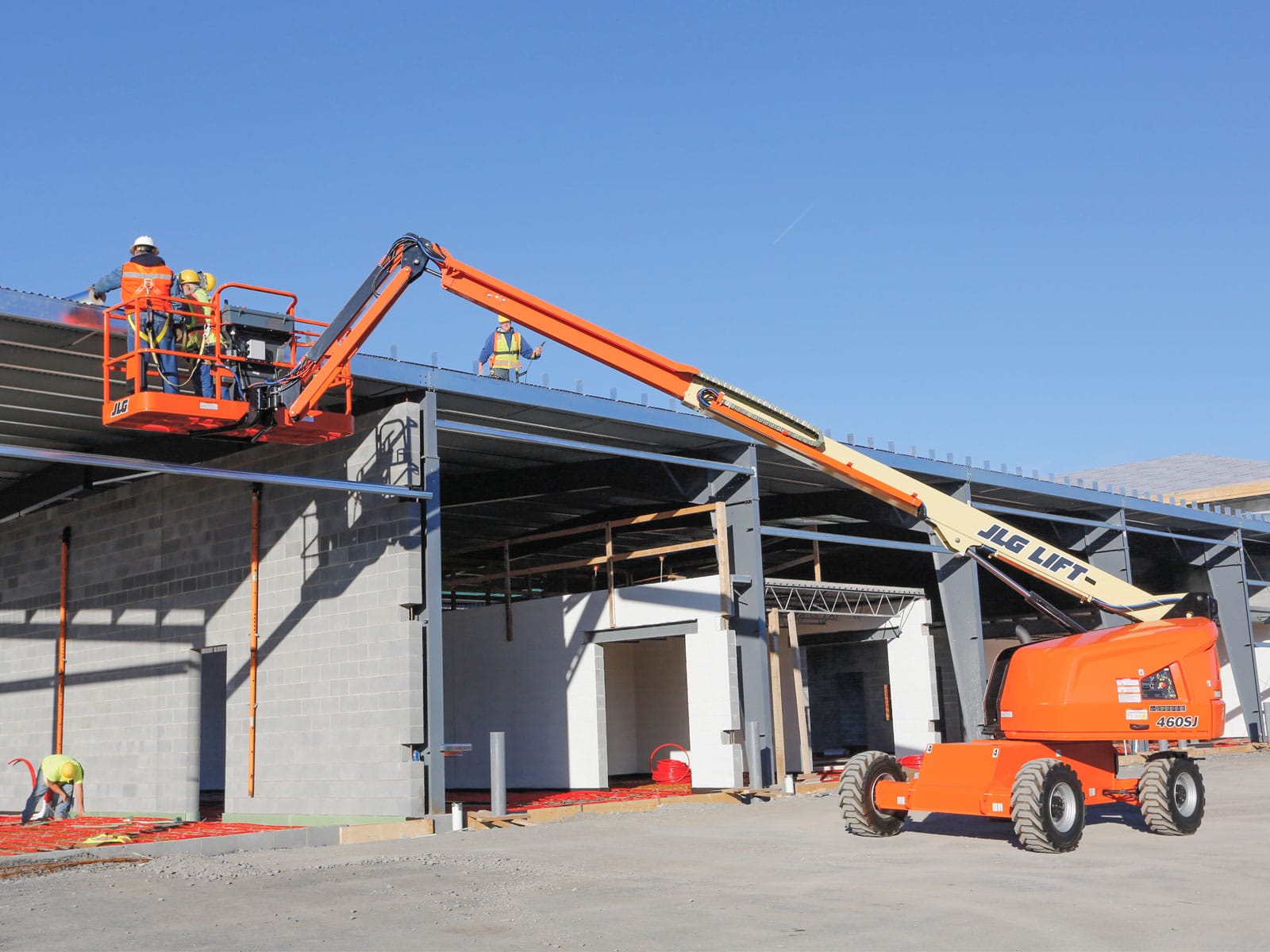

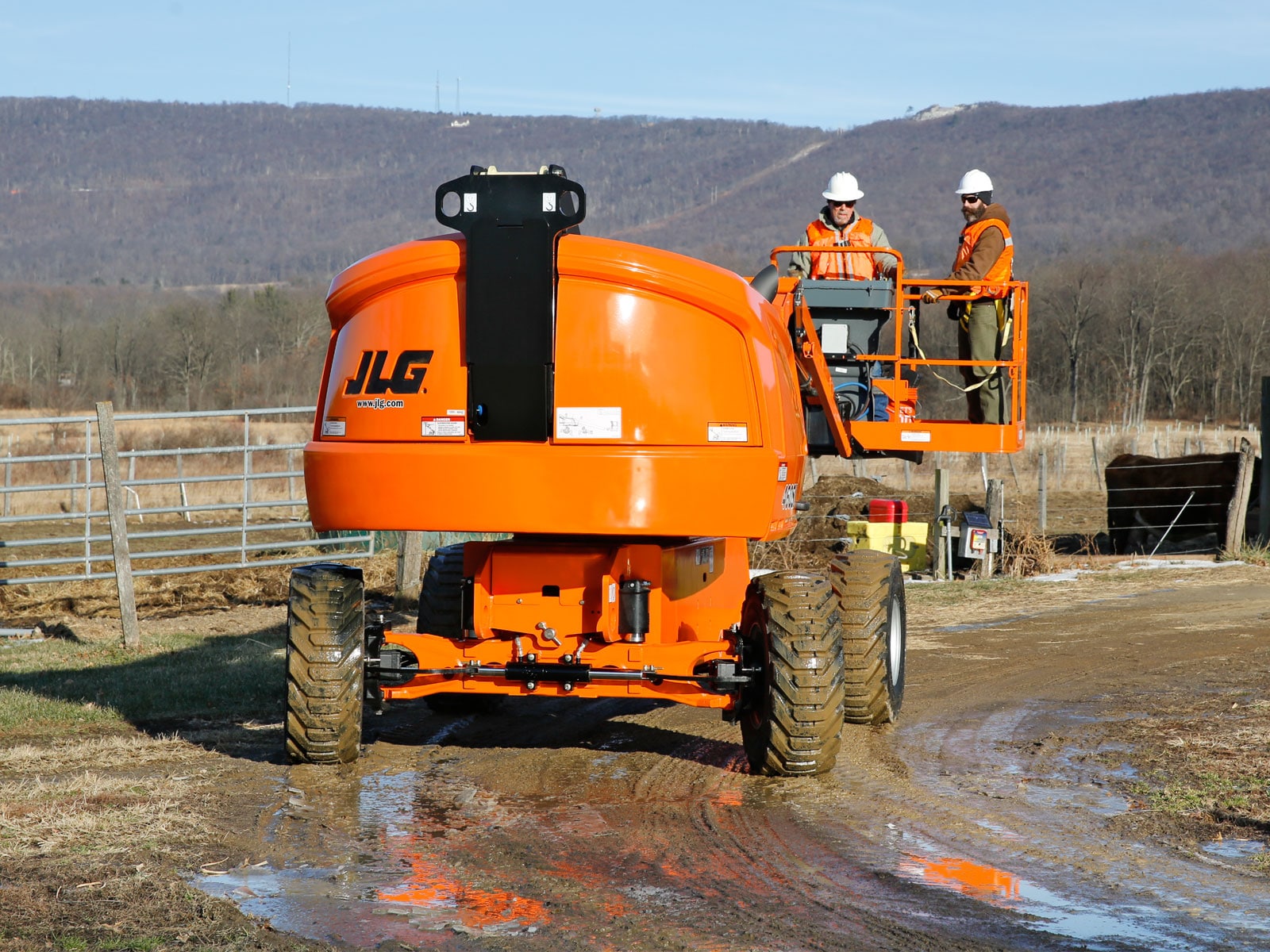

460SJ
New Equipment / Aerial Lifts / 460SJ
460SJ
Location:
Unit:
Price: Contact for price
Key Specs
- Platform Height: 46 ft / 14.02 m
- Platform Capacity – Unrestricted: 600 lb / 272.16 kg
- Horizontal Outreach: 39 ft / 11.89 m
Key Features
- Improved multifunction capability increases productivity.
- New hood design provides more durability and serviceability.
- Larger capacity at 600 lb.
| Capacity | 600lbs |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
| Platform Dimension B | 8 ft / 2.44 m |
|---|---|
| Machine Weight | 16600 lb / 7529.63 kg |
| Tailswing | 2 ft 10 in. / 0.86 m |
| Ground Clearance | 1 ft / 0.31 m |
| Engine Type – Diesel | Deutz D2.9L4 Tier 4 Final 49 hp 36.4 kW |
| Turning Radius – Outside | 15 ft 11 in. / 4.84 m |
| Engine Type – Dual Fuel | GM Vortec 3000 MPFI 82 hp 61 kW |
| Platform Height | 46 ft / 14.02 m |
| Gradeability – 4WD | 45 % |
| Horizontal Outreach | 39 ft / 11.89 m |
| Transport Length | 29 ft 3 in. / 8.91 m |
| Capacity – Hydraulic Reservoir | 36 gal. / 136.27 L |
| Swing | 360 Degrees |
| Platform Dimension A | 3 ft / 0.91 m |
| Jib – Range of articulation | 130 Degrees |
| Machine Height | 8 ft 1 in. / 2.47 m |
| Machine Width | 7 ft 7 in. / 2.31 m |
| Capacity – Fuel Tank | 22 gal. / 83.28 L |
| Drive Speed – 4WD | 4.5 mph / 7.24 km/h |
| Swing Type | Continuous |
| Tire Size | 12 x 16.5 Pneumatic Lug Tread Tires |
| Horizontal Jib Rotation | 0 Degrees |
| Maximum Ground Bearing Pressure | 60 psi / 4.20 Kg/cm2 |
| Auxiliary Power | 12 Volts DC |
