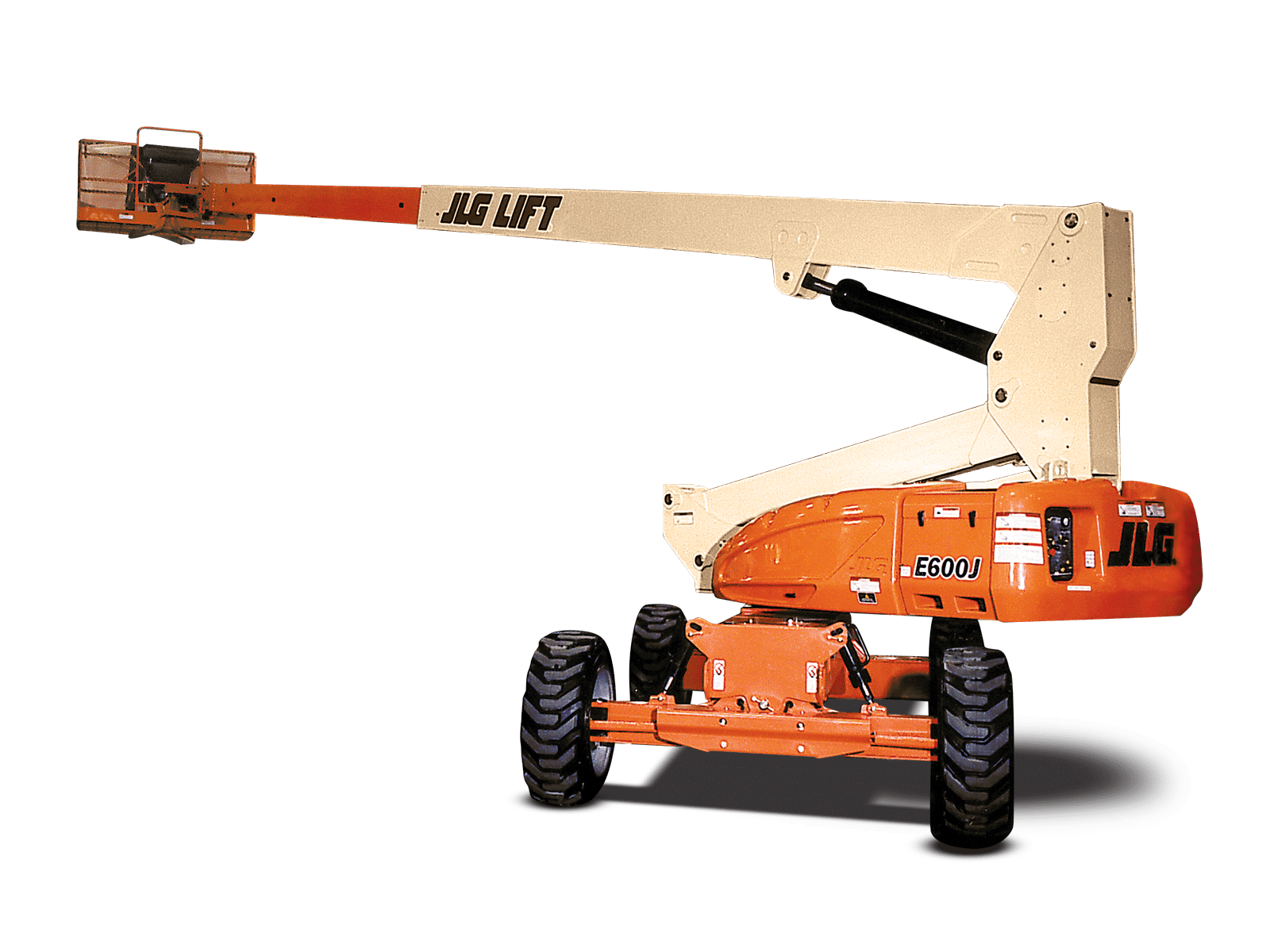

E600J
New Equipment / Aerial Lifts / E600J
E600J
Location:
Unit:
Price: Contact for price
Key Specs
- Platform Height: 60 ft 3 in. / 18.36 m
- Platform Capacity: 500 lb / 226.80 kg
- Machine Width: 7 ft 11 in. / 2.41 m
Key Features
- Highest electric boom in the industry.
- Environmentally friendly – zero emissions, reduced noise and standard non-marking tires.
- Maneuverability – move over uneven surfaces with Automatic Traction Control.
- Productivity – work longer with longer duty cycles.
| Capacity | 500lbs |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
| Gradeability – 2WD | 30 % |
|---|---|
| Jib – Range of articulation | 145 Degrees |
| Platform Dimension A | 2 ft 6 in. / 0.76 m |
| Tire Size | 36 x 14-22.5 Non-marking Pnuematic |
| Gradeability – 4WD | 45 % |
| Machine Length | 30 ft 9 in. / 9.37 m |
| Wheelbase | 9 ft / 2.74 m |
| Swing Type | Non-Continuous |
| Platform Dimension B | 6 ft / 1.83 m |
| Machine Height | 8 ft 4 in. / 2.54 m |
| Machine Width | 7 ft 11 in. / 2.41 m |
| Horizontal Jib Rotation | 0 Degrees |
| Machine Weight | 15200 lb / 6894.60 kg |
| Tailswing | 4 ft / 1.22 m |
| Turning Radius – Outside | 15 ft 4 in. / 4.67 m |
| Batteries | 8 x 6V, 415 amp-hr |
| Ground Clearance | 1 ft / 0.3 m |
| Horizontal Outreach | 43 ft 3 in. / 13.18 m |
| Swing | 400 Degrees |
| Platform Height | 60 ft 3 in. / 18.36 m |
| Capacity – Hydraulic Reservoir | 15 gal. / 56.78 L |
| Electrical System | 48 Volts DC |
| Drive Speed – Platform Lowered | 3 mph / 4.83 km/h |
