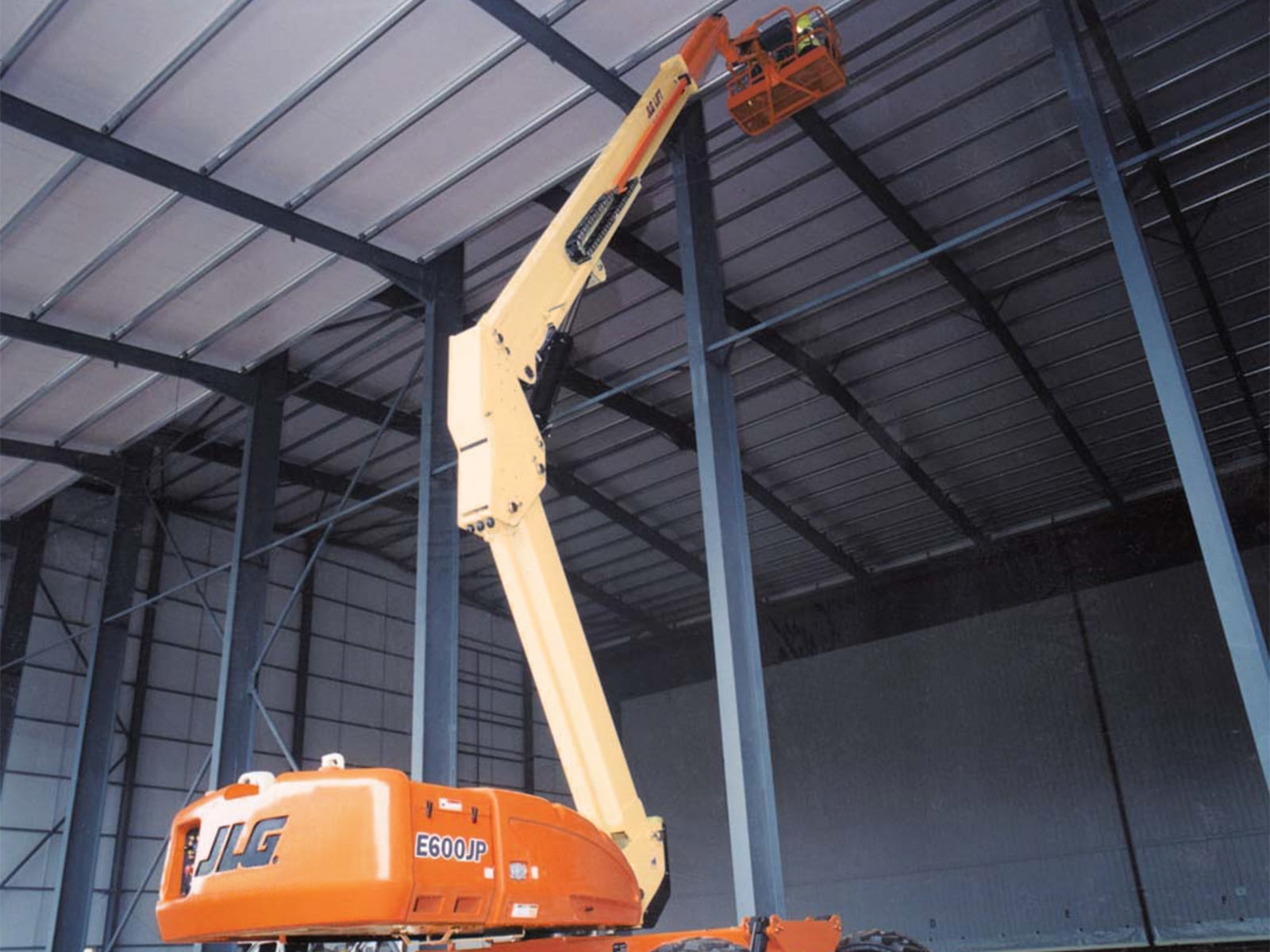

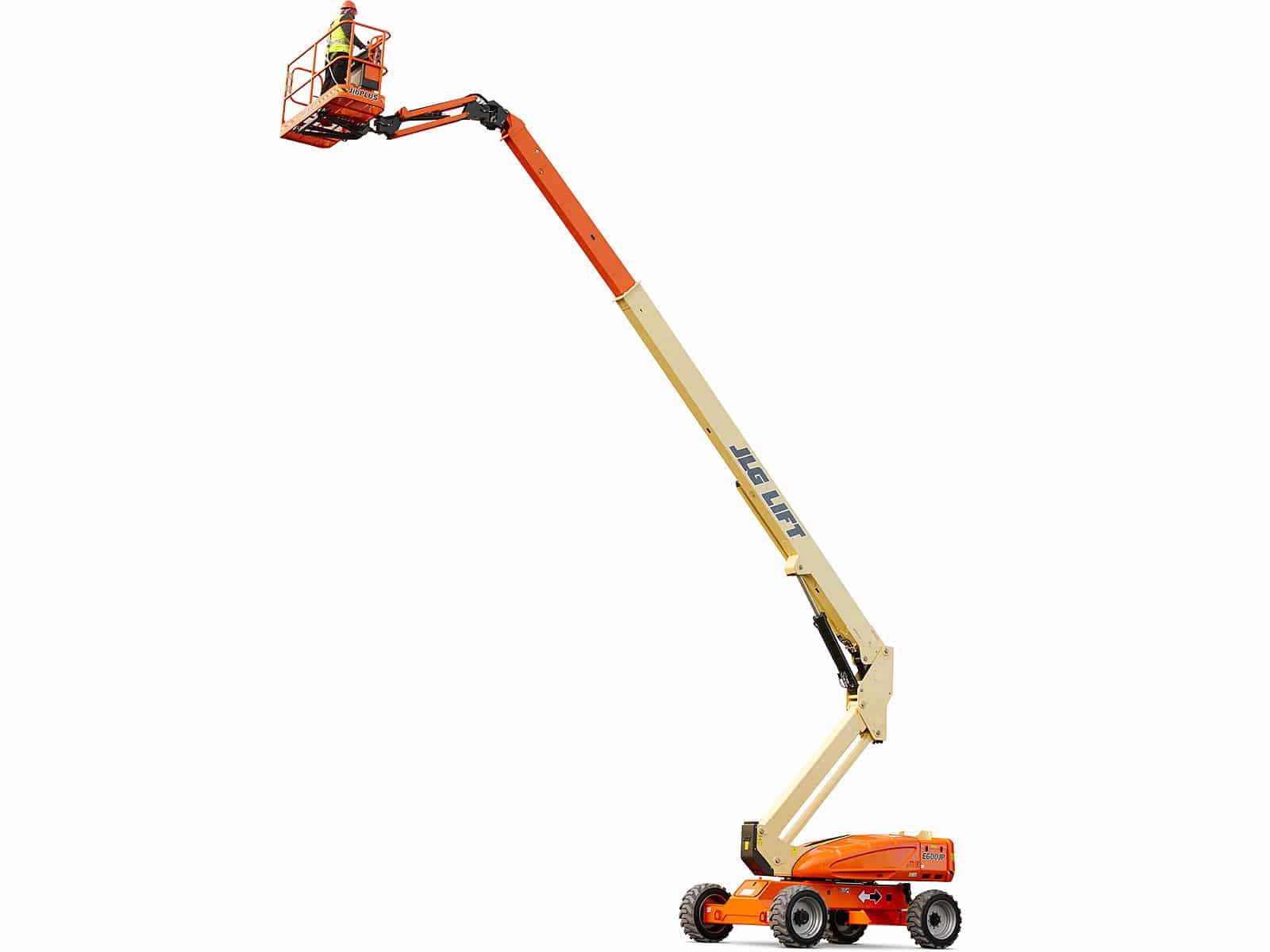

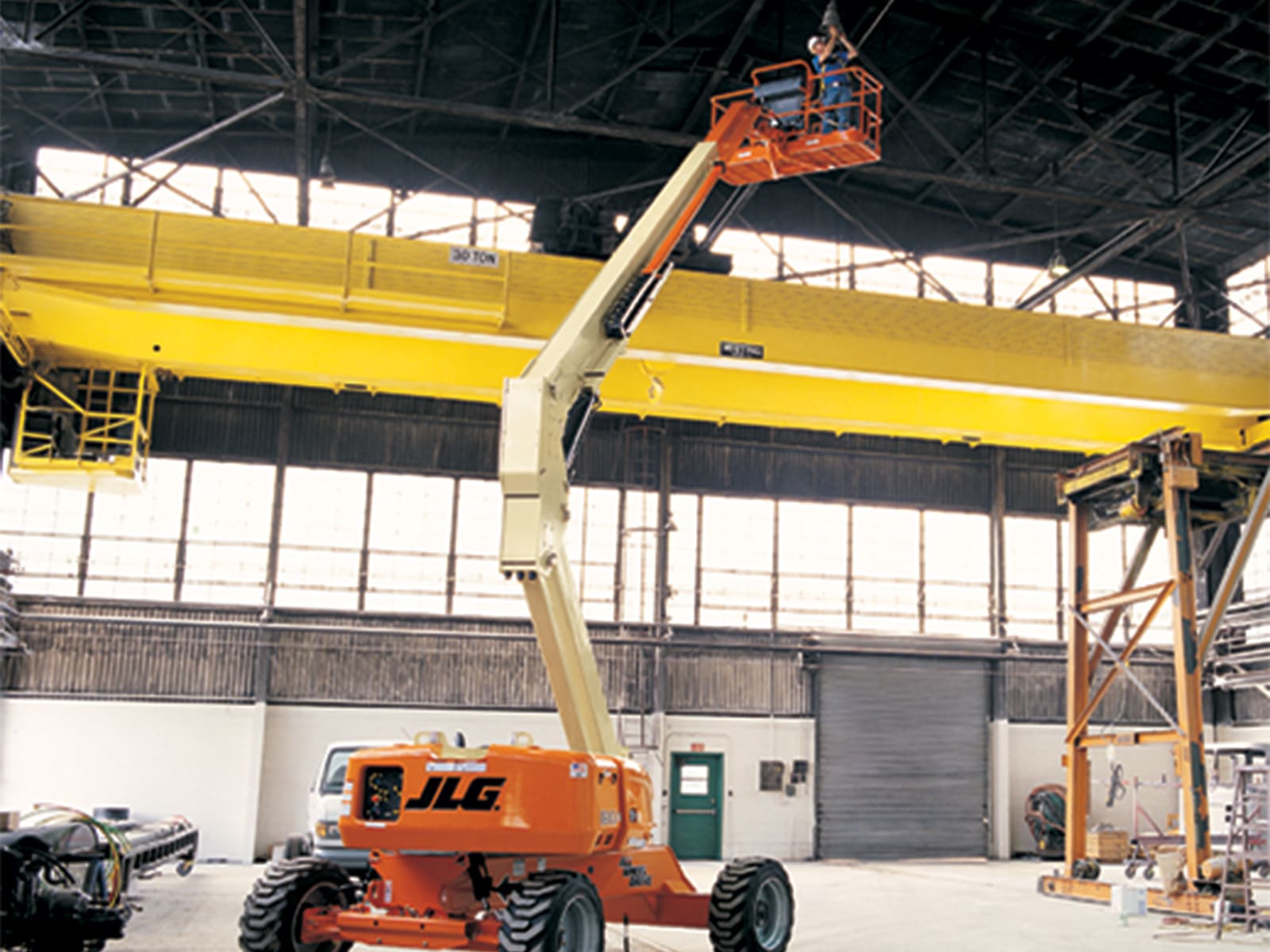

E600JP

JLG

Location:

Unit:

Price: Contact for price

Highest electric boom in the industry.
Environmentally friendly – zero emissions, reduced noise and standard non-marking tires.
Maneuverability – move over uneven surfaces with Automatic Traction Control.
Productivity – work longer with longer duty cycles.

Capacity

500lbs

Load Weight

Max Lift Height

Power

Environment

Primary Task

Industry

Model Year

Truck Type

Meter

Upright Lift / Lower Height

Upright Type

Attachments

Valve Type

Fork Length

Tire Type

Seat Type

Battery Condition

Transmission

Phases

Drive Speed – Platform Lowered	3 mph / 4.83 km/h
Jib – Range of articulation	145 Degrees
Tailswing	4 ft / 1.22 m
Electrical System	48 Volts DC
Machine Weight	15750 lb / 7144.08 kg
Turning Radius – Outside	15 ft 4 in. / 4.67 m
Batteries	8 x 6V, 415 amp-hr
Horizontal Outreach	44 ft 5 in. / 13.54 m
Machine Width	7 ft 11 in. / 2.41 m
Tire Size	36 x 14-22.5 Non-marking Pnuematic
Platform Dimension B	6 ft / 1.83 m
Gradeability – 4WD	45 %
Platform Dimension A	2 ft 6 in. / 0.76 m
Swing Type	Non-Continuous
Ground Clearance	1 ft / 0.3 m
Horizontal Jib Rotation	180 Degrees
Wheelbase	9 ft / 2.74 m
Gradeability – 2WD	30 %
Swing	400 Degrees
Machine Height	8 ft 4 in. / 2.54 m
Capacity – Hydraulic Reservoir	15 gal. / 56.78 L
Platform Height	60 ft 4 in. / 18.39 m
Machine Length	33 ft 4 in. / 10.16 m
