S-40 XC, S-40 TraX and S-45XC, S-45 TraX
New Equipment / Aerial Lifts / S-40 XC, S-40 TraX and S-45XC, S-45 TraX
S-40 XC, S-40 TraX and S-45XC, S-45 TraX
Location:
Unit:
Price: Contact for price

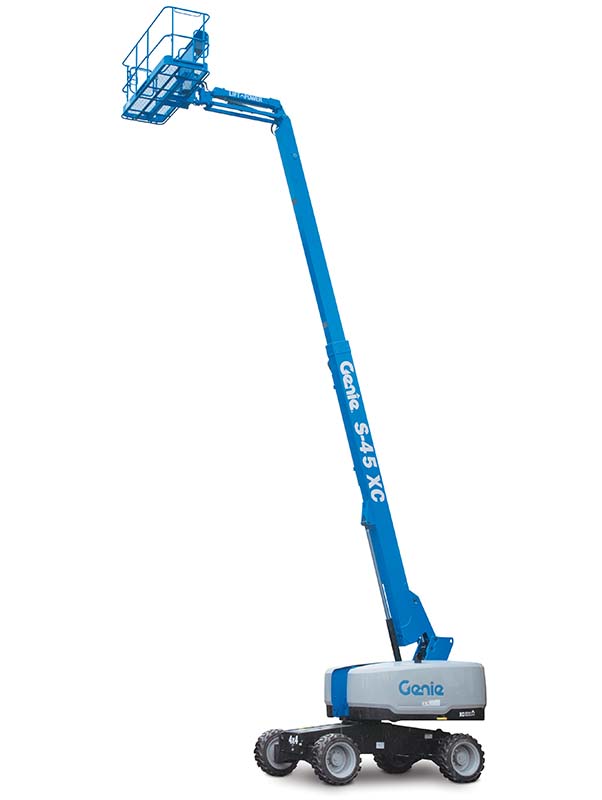

Able to perform a wider range of heavier lift tasks on construction and industrial jobsites with Genie® S®-40 XC™ and S-45 XC telescopic booms — offering a dual lift capacity of 660-lb (300 kg) unrestricted and 1,000-lb (454 kg) restricted and up to three people on board. These models are also available with a fixed, four-point track system that allows contractors to work any time of the year.
Overview
- 660-lb (300 kg)/1,000-lb (454 kg) dual platform capacity
- Load sense technology for accurate load weighing and zero-load field calibration
- Automatic envelope control enables boom to retract when it reaches its operating envelope
- Chassis tilt sensor technology maximizes operators’ ability to access hard-to-reach work areas
- Robust jib is capable of easily handling increased maximum capacity
- CAN-bus control system with onboard diagnostics maximizes serviceability
- Design focus on user interface and simplicity makes this machine easy-to-use
- Can be equipped with the new Genie Lift Power™ generator system
- Commonality in design and parts with other Genie booms

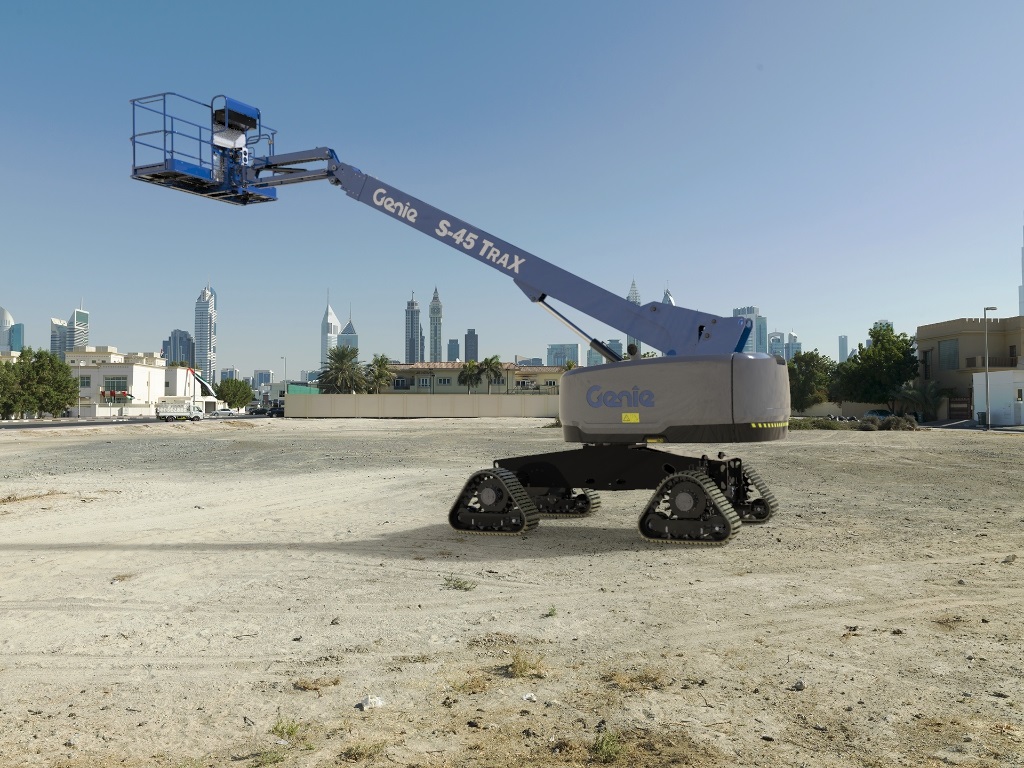

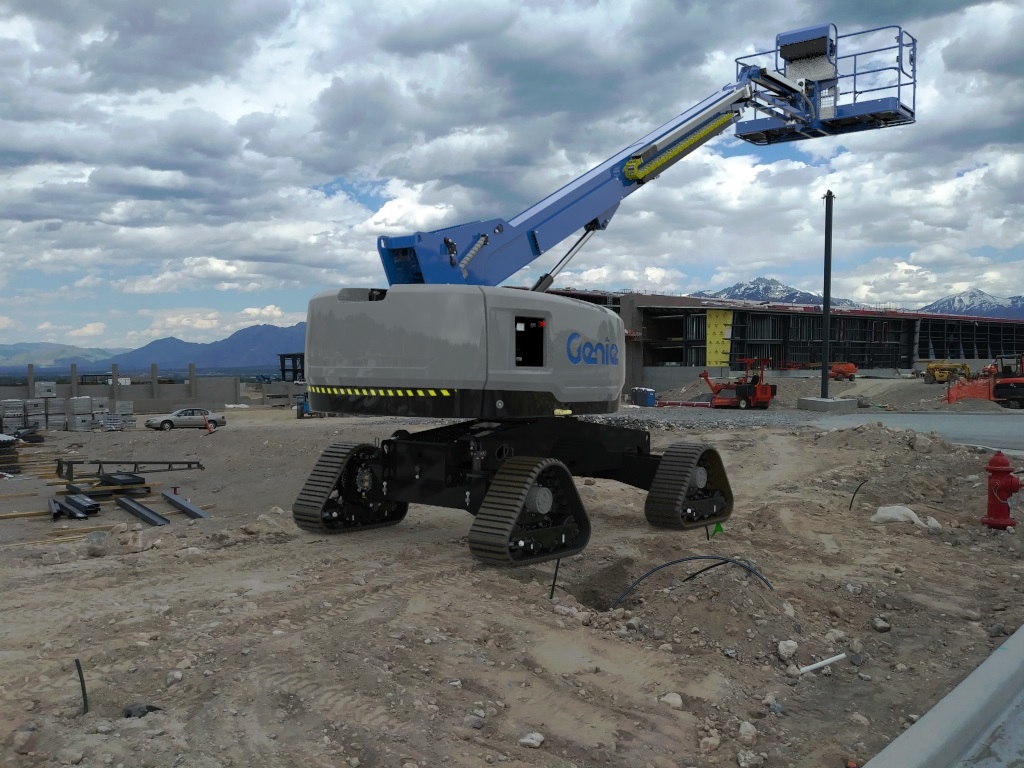

S-40 TraX and S-45 TraX Overview
- Same features as above
- Patented track design features 4 independent tracks, swivelling vertically up to 20° for a smooth drive on rough ground conditions
- 30° steer angle for easy manoeuvring
| Capacity | 660lbs Unrestricted, 1000lbs Restricted |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
| Max Up and Over Clearance (riser extended) | S-40 XC: 1 ft / S-45 XC: 4 ft 2 in | S-40 XC: 0.30 m / S-45 XC: 1.27 m |
|---|---|
| Max Horizontal Reach | S-40 XC: 31 ft 8 in / S-45 XC: 36 ft 2 in | S-40 XC: 9.67 m / S-45 XC: 11.02 m |
| Machine Width and Length | 8 ft 2 in, 31 ft 1 in | 2.49 m, 9.47 m |
| Max Working Height | S-40 XC: 46 ft / S-45 XC: 51 ft | S-40 XC: 14.19 m / S-45 XC: 15.72 m |
Options
Chassis Options
- Tow package
Tire Options
- Rough terrain foam-filled (standard)
- Rough terrain non-marking (air or foam-filled)
- Trax (track system)
Engine Options
- 49 hp (36.54 kW) Deutz diesel T4f (standard)
- 48 hp (35.79 kW) Perkins turbo diesel T4f 404F-E22T
- 60hp (44.74kW) Ford Gas/LPG
Lift/Turntable Options
- Specialty hydraulic oil (60 gal – cold weather, fire resistant, or biodegradable)
- LPG tank, 33.5 lb. capacity: Ford engine only
- Second battery
- Hostile environment kit: cylinder bellows, boom wiper seals, platform and ground control box covers
- Deluxe hostile environment kit: hostile environment kit, ring gear guard, cable track hose cover, air pre-cleaner
Platforms
- Steel 8 ft (2.44 m) tri entry with side swing gate (standard)
- Steel 6 ft (1.83 m) dual entry with side swing gate
Platform Options
- Lift Power™ 3kW AC generator, 110V/60Hz or 220V/50Hz
- Air line to platform: ½ in. inner diameter
- Aircraft protection kit: platform foam padding and padded disable system
- Aircraft protection kit: with swing gate
- Light package: 2 chassis mounted drive lights and 2 platform mounted work lights
- Lockable platform and ground control box covers
- Panel cradle package
- Platform auxiliary top rail
- Thumb rocker steering
- Lift Power™ 12kW Welder – Select Lincoln or Miller
- Lift Power™ 12kW Welder Ready package
- Traveling fall arrest anchor system: requires 6ft platform
- Traveling fall arrest anchor system: requires 8ft platform
Models and Specifications
Overview
Options
Chassis Options
- Tow package
Tire Options
- Rough terrain foam-filled (standard)
- Rough terrain non-marking (air or foam-filled)
- Trax (track system)
Engine Options
- 49 hp (36.54 kW) Deutz diesel T4f (standard)
- 48 hp (35.79 kW) Perkins turbo diesel T4f 404F-E22T
- 60hp (44.74kW) Ford Gas/LPG
Lift/Turntable Options
- Specialty hydraulic oil (60 gal – cold weather, fire resistant, or biodegradable)
- LPG tank, 33.5 lb. capacity: Ford engine only
- Second battery
- Hostile environment kit: cylinder bellows, boom wiper seals, platform and ground control box covers
- Deluxe hostile environment kit: hostile environment kit, ring gear guard, cable track hose cover, air pre-cleaner
Platforms
- Steel 8 ft (2.44 m) tri entry with side swing gate (standard)
- Steel 6 ft (1.83 m) dual entry with side swing gate
Platform Options
- Lift Power™ 3kW AC generator, 110V/60Hz or 220V/50Hz
- Air line to platform: ½ in. inner diameter
- Aircraft protection kit: platform foam padding and padded disable system
- Aircraft protection kit: with swing gate
- Light package: 2 chassis mounted drive lights and 2 platform mounted work lights
- Lockable platform and ground control box covers
- Panel cradle package
- Platform auxiliary top rail
- Thumb rocker steering
- Lift Power™ 12kW Welder – Select Lincoln or Miller
- Lift Power™ 12kW Welder Ready package
- Traveling fall arrest anchor system: requires 6ft platform
- Traveling fall arrest anchor system: requires 8ft platform
