S-60 HF and S-65 HF

Location:

Unit:

Price: Contact for price

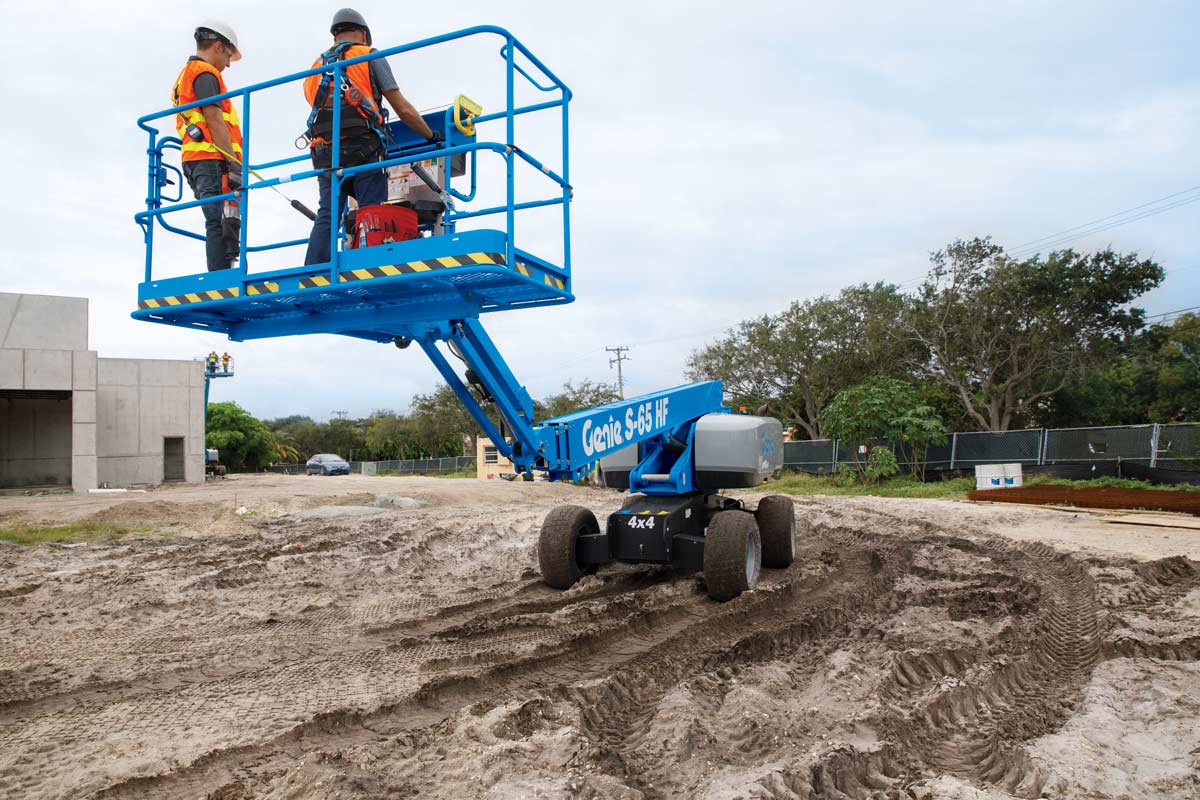

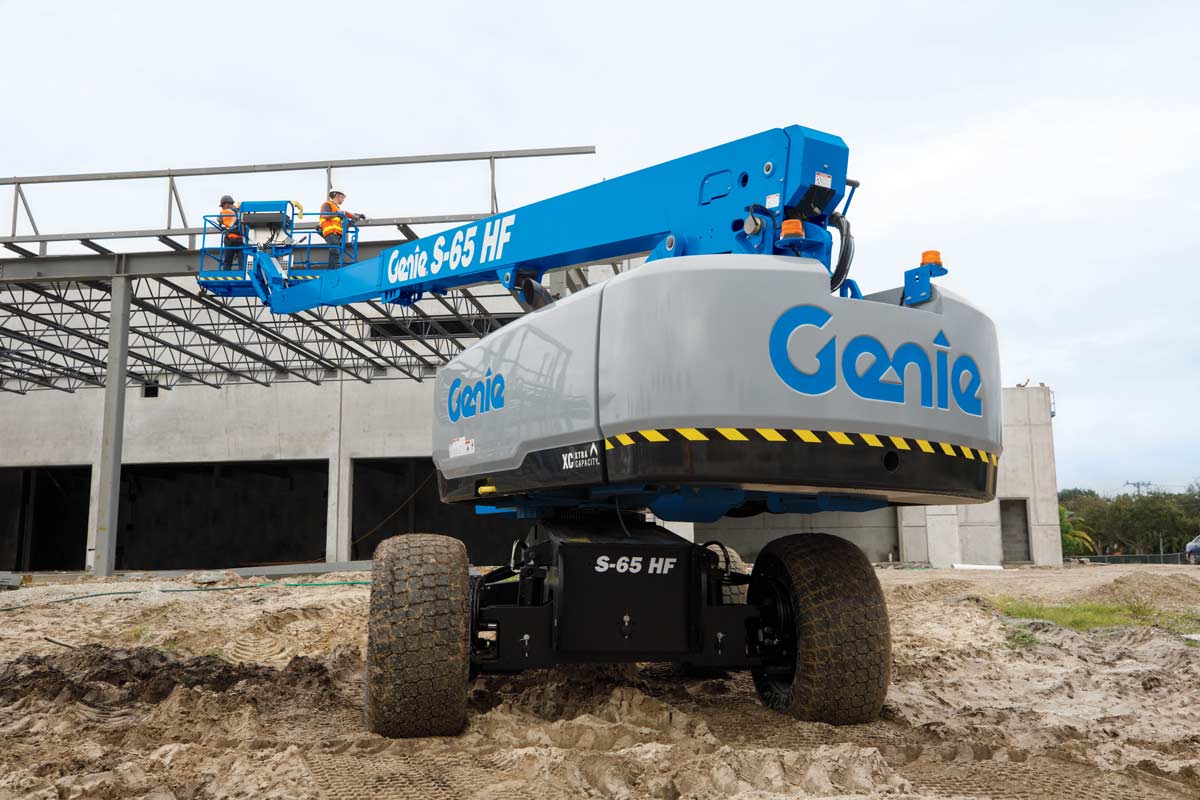

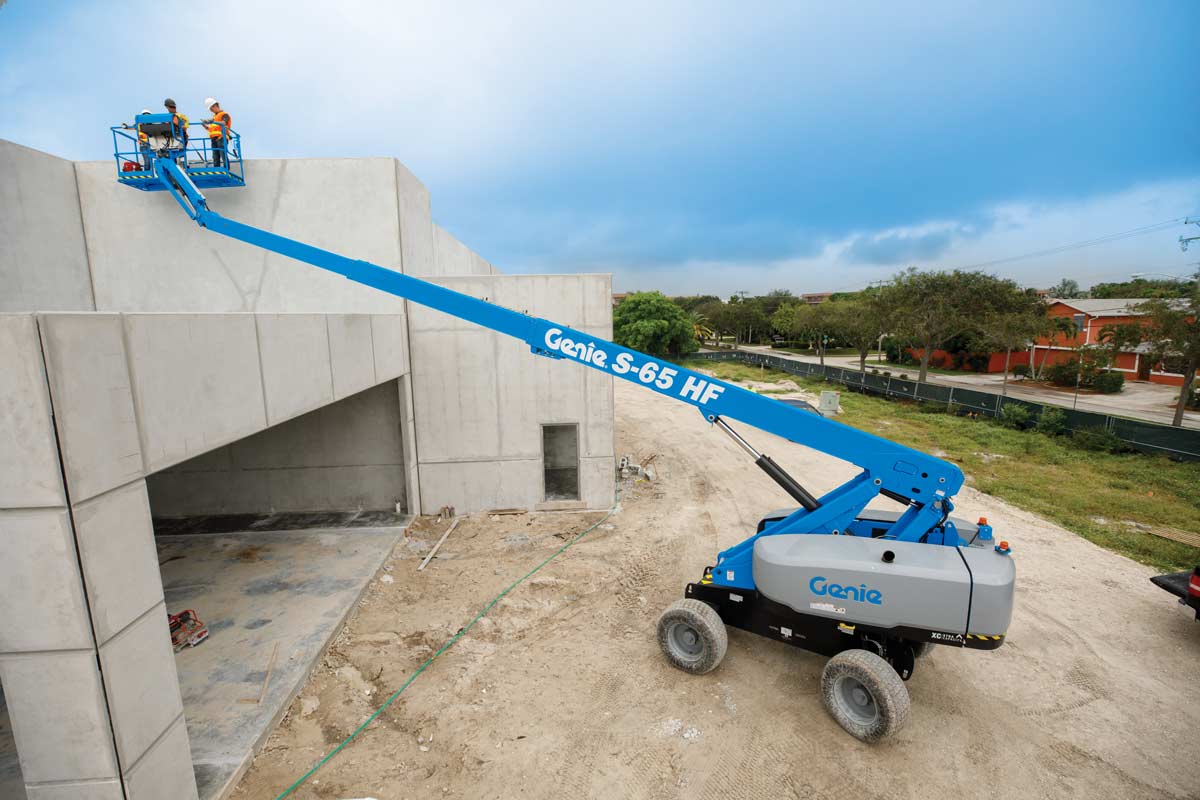

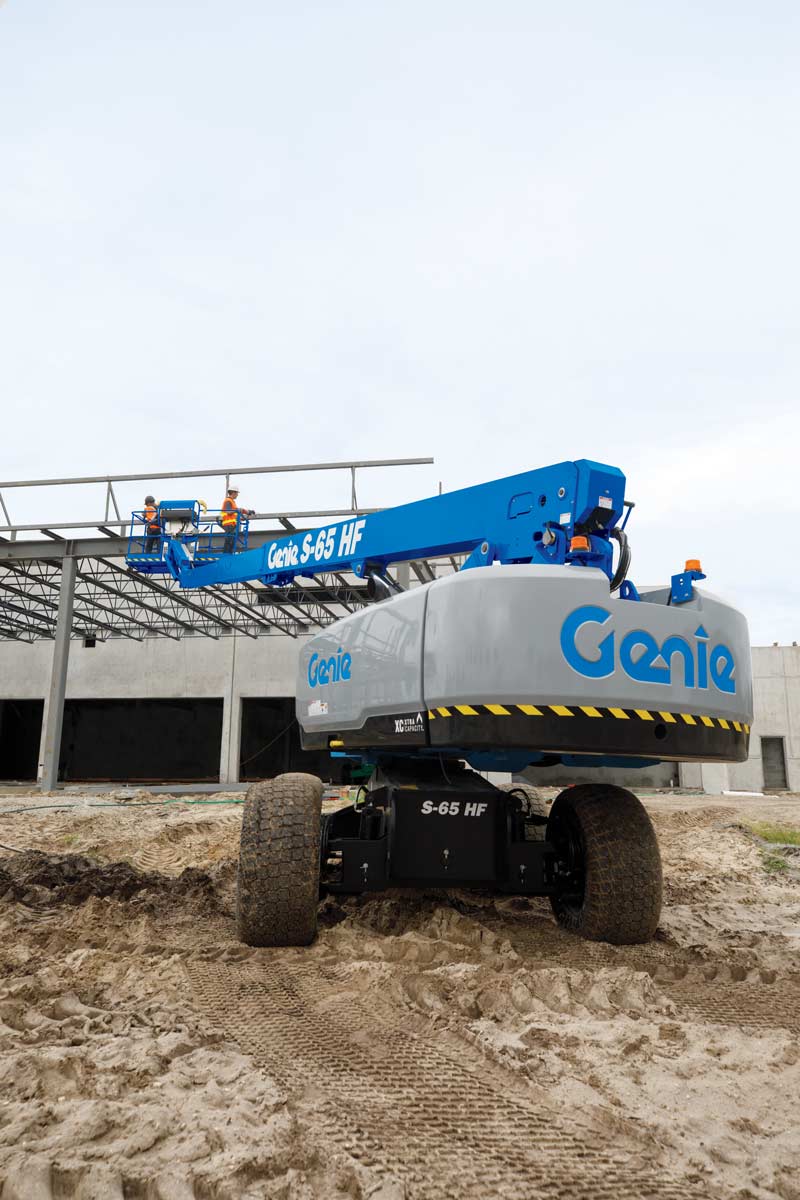

The Genie^® S^®-60 HF and S-65 HF high float telescopic booms are designed to perform heavy-lifting tasks in sensitive turf conditions, such as sand and turf ground conditions. Engineered to “float” on soft or delicate surfaces, the Genie S-60 and S-65 HF booms protect softer surfaces during operation that could be damaged by the more aggressive tread on regular rough terrain tires.

Overview

This new generation of Genie HF booms retain the productivity features that enhance customers’ ability to get work done quickly, including:

A virtual pivot primary boom that aligns the machine’s center of gravity for lower machine weight
- 22,224 lb (10,081 kg) on the Genie S-60 HF model
- 24,454 lb (11,092 kg) on the Genie S-65 HF model
4WD and positive traction drive maintains equal power to all drive wheels
45% gradeability (stowed) for driving on slopes

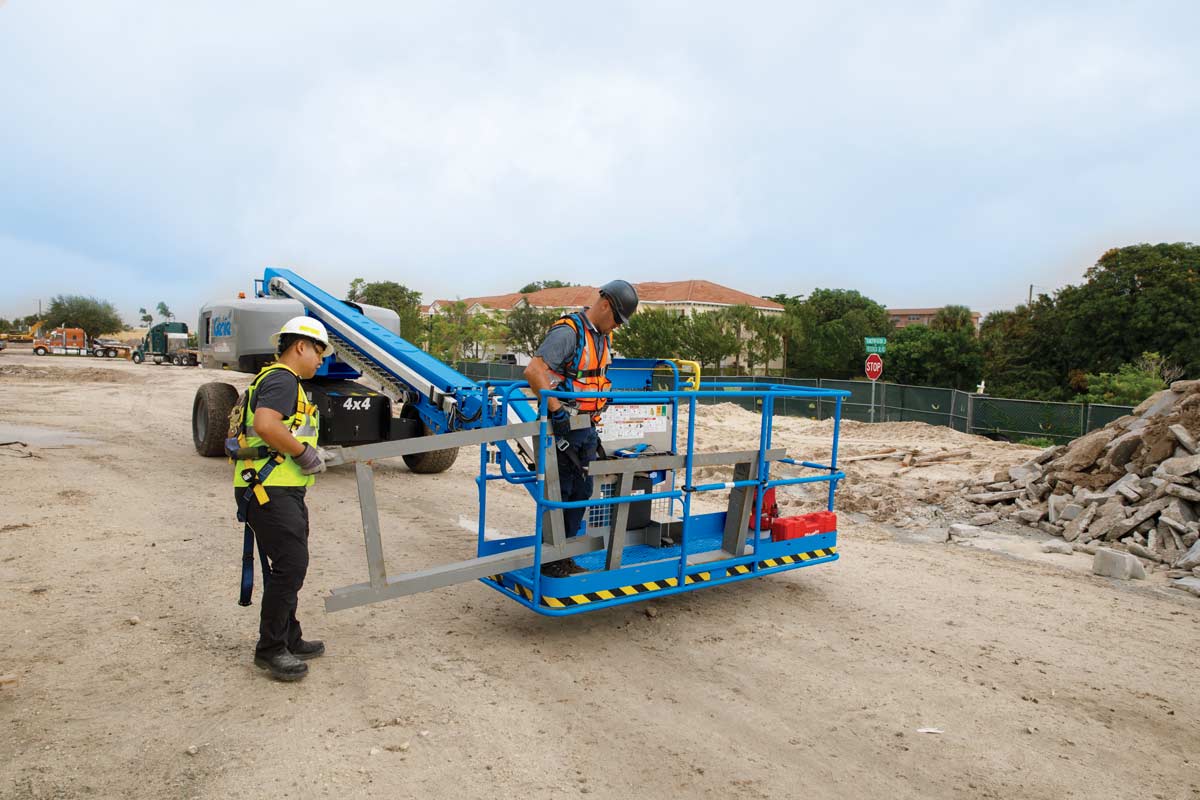

160˚ platform rotation and 360˚ continuous rotation turntable for quick, precision positioning

Capacity

600lbs

Load Weight

Max Lift Height

Power

Environment

Primary Task

Industry

Model Year

Truck Type

Meter

Upright Lift / Lower Height

Upright Type

Attachments

Valve Type

Fork Length

Tire Type

Seat Type

Battery Condition

Transmission

Phases

Below Ground Reach	S-60 HF: 4 ft 5 in / S-65 HF: 7 ft 5 in \| S-60 HF: 1.34 m / S-65 HF: 2.27 m
Machine Width and Length	S-60 HF: 8ft 5 in, 28 ft 7 in / S-65 HF: 8 ft 5 in, 32 ft \| S-60 HF: 2.55 m, 8.71 m / S-65 HF: 2.55 m, 9.76 m
Max Platform Height	S-60 HF: 60 ft 2 in / S-65 HF: 65 ft 2 in \| S-60 HF: 18.33 m / S-65 HF: 19.86 m
Max Horizontal Reach	S-60 HF: 46 ft 7 in / S-65 HF: 51 ft 2 in \| S-60 HF: 14.21 m / S-65 HF: 15.60 m
