S-60 XC, S-60 TraX and S-65XC, S-65 TraX
New Equipment / Aerial Lifts / S-60 XC, S-60 TraX and S-65XC, S-65 TraX
S-60 XC, S-60 TraX and S-65XC, S-65 TraX
Location:
Unit:
Price: Contact for price
Able to perform a wider range of heavier lift tasks on construction and industrial jobsites with Genie® S®-60 XC™ and S-65 XC telescopic booms — offering a dual lift capacity of 660-lb (300 kg) unrestricted and 1,000-lb (454 kg) restricted and up to three people on board. These models are also available with a fixed, four-point track system that allows contractors to work any time of the year.
Overview
- Maximum capacity with a robust jib design to handle increased loads
- Load sense technology for accurate load weighing and zero-load field calibration
- Chassis tilt sensor technology maximizes access to hard-to-reach work areas
- Onboard diagnostics maximizes serviceability
- Option to add the new Genie Lift Power™ generator system

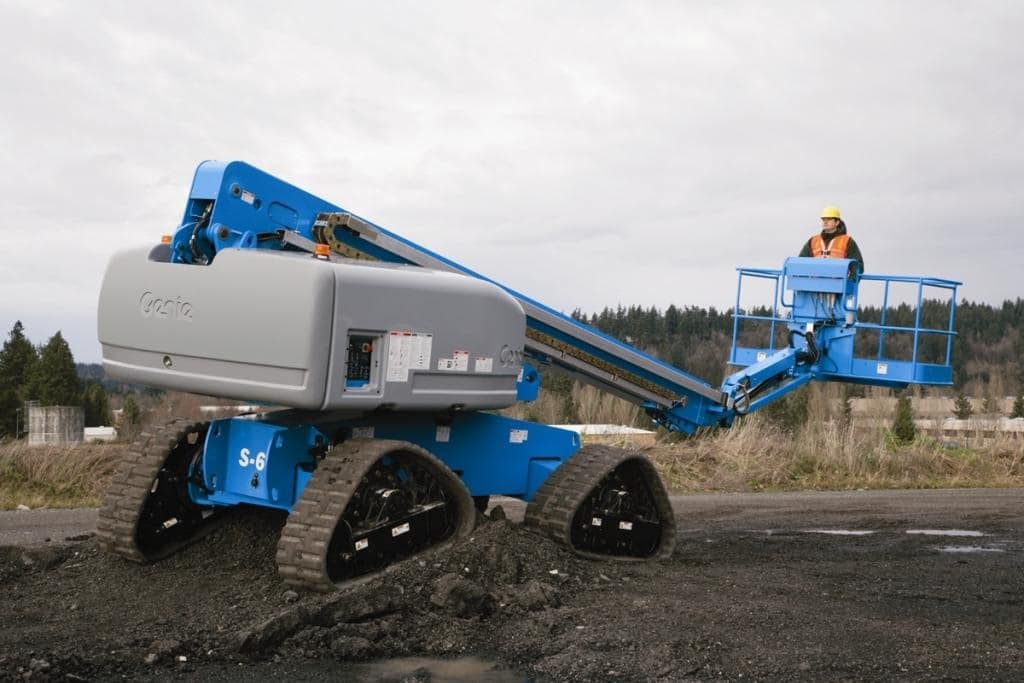

S-60 TraX and S-65 TraX Overview
- Same features as above
- Patented track design features 4 independent tracks, swivelling vertically up to 20° for a smooth drive on rough ground conditions
- 30° steer angle for easy manoeuvring
| Capacity | 660lbs Unrestricted, 1000lbs Restricted |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
| Below Ground Reach | 5 ft 7 in | 1.70 m |
|---|---|
| Max Horizontal Reach | S-60 XC, 50 ft 10 in / S-65 XC, 54 ft 2 in | S-60 XC, 15.49 m / S-65 XC, 16.51 m |
| Max Working Height | S-60 XC: 66 ft / S-65 XC: 71 ft | S-60 XC: 20.30 m / S-65 XC: 21.80 m |
| Machine Width and Length | 8 ft 2 in, 31 ft 11 in | 2.49 m, 9.73 m |
Options
Chassis Options
- Tow package
Tire Options
- S-60 XC Trax or S-65 XC Trax: Quadra Track System
- Rough terrain, foam-filled tires (petroleum based)
- Rough terrain, non-marking, foam-filled tires (water based)
- Rough terrain, non-marking, foam-filled tires (petroleum based)
Engine Options
- 60 hp Ford MSG425, gas/LPG Dual Fuel (not available on S60/65 Trax)
- 74 hp Deutz Tier 4f TD2.9L4, turbo diesel (standard with Trax)
- Diesel intake air pre-cleaner
- LPS Fire protection rating: Ford engine only and requires LP only operation
- Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater and hydraulic tank heater
- Ford engine gauge package: oil pressure, temperature and voltage
Lift/Turntable Options
- Specialty hydraulic oil (60 gal – cold weather, fire resistant, or biodegradable)
- LPG tank, 33.5 lb. capacity: Ford engine only
- Second battery
- Hostile environment kit: cylinder bellows, boom wiper seals, platform and ground control box covers
- Deluxe hostile environment kit: hostile environment kit, ring gear guard, cable track hose cover, air pre-cleaner
Platforms
- 4 ft. front-entry steel platform
- 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
- 6 ft. dual entry platform with side swing gate
Platform Options
- Lift Power™ 3kW AC generator, 110V/60Hz or 220V/50Hz
- Air line to platform: ½ in. inner diameter
- Aircraft protection kit: platform foam padding and padded disable system
- Aircraft protection kit: with swing gate
- Light package: 2 chassis mounted drive lights and 2 platform mounted work lights
- Lockable platform and ground control box covers
- Panel cradle package
- Platform auxiliary top rail
- Thumb rocker steering
- Lift Power™ 12kW Welder – Select Lincoln or Miller
- Lift Power™ 12kW Welder Ready package
- Traveling fall arrest anchor system: requires 6ft platform
- Traveling fall arrest anchor system: requires 8ft platform
Models and Specifications
Overview
Options
Chassis Options
- Tow package
Tire Options
- S-60 XC Trax or S-65 XC Trax: Quadra Track System
- Rough terrain, foam-filled tires (petroleum based)
- Rough terrain, non-marking, foam-filled tires (water based)
- Rough terrain, non-marking, foam-filled tires (petroleum based)
Engine Options
- 60 hp Ford MSG425, gas/LPG Dual Fuel (not available on S60/65 Trax)
- 74 hp Deutz Tier 4f TD2.9L4, turbo diesel (standard with Trax)
- Diesel intake air pre-cleaner
- LPS Fire protection rating: Ford engine only and requires LP only operation
- Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater and hydraulic tank heater
- Ford engine gauge package: oil pressure, temperature and voltage
Lift/Turntable Options
- Specialty hydraulic oil (60 gal – cold weather, fire resistant, or biodegradable)
- LPG tank, 33.5 lb. capacity: Ford engine only
- Second battery
- Hostile environment kit: cylinder bellows, boom wiper seals, platform and ground control box covers
- Deluxe hostile environment kit: hostile environment kit, ring gear guard, cable track hose cover, air pre-cleaner
Platforms
- 4 ft. front-entry steel platform
- 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
- 6 ft. dual entry platform with side swing gate
Platform Options
- Lift Power™ 3kW AC generator, 110V/60Hz or 220V/50Hz
- Air line to platform: ½ in. inner diameter
- Aircraft protection kit: platform foam padding and padded disable system
- Aircraft protection kit: with swing gate
- Light package: 2 chassis mounted drive lights and 2 platform mounted work lights
- Lockable platform and ground control box covers
- Panel cradle package
- Platform auxiliary top rail
- Thumb rocker steering
- Lift Power™ 12kW Welder – Select Lincoln or Miller
- Lift Power™ 12kW Welder Ready package
- Traveling fall arrest anchor system: requires 6ft platform
- Traveling fall arrest anchor system: requires 8ft platform
