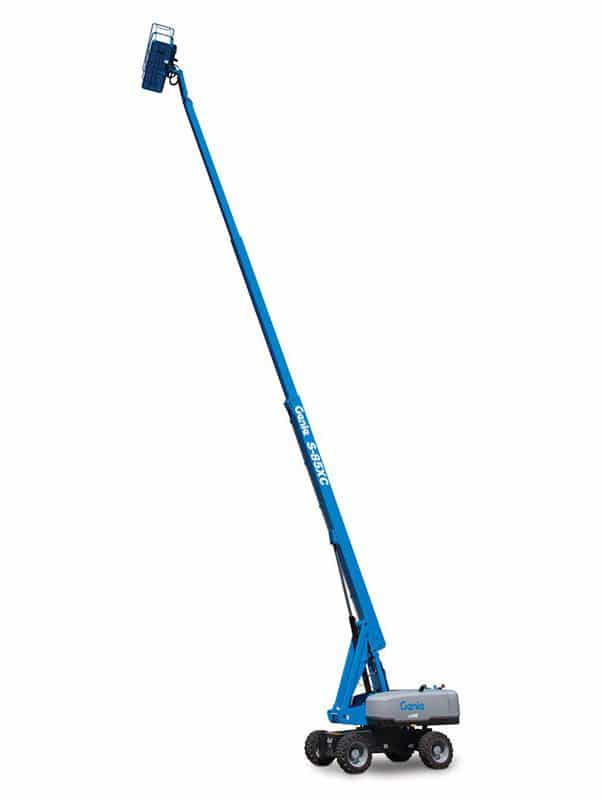

S-80 XC and S-85 XC
New Equipment / Aerial Lifts / S-80 XC and S-85 XC
S-80 XC and S-85 XC
Location:
Unit:
Price: Contact for price
Genie® S®-80 XC™ and S®-85 XC telescopic booms offer a dual lift capacity of 660-lb (300 kg) unrestricted and 1,000-lb (454 kg) restricted to perform a wider range of heavier lift tasks on construction and industrial jobsites. And, the Genie Xtra Capacity™ (XC) feature lets up to three people work onboard while still leaving room for tools and jobsite materials.
Overview
- Maximum capacity with a robust jib design to handle increased loads
- Load sense technology for accurate load weighing and zero-load field calibration
- Chassis tilt sensor technology maximizes access to hard-to-reach work areas
- Onboard diagnostics maximizes serviceability
- Option to add the new Genie Lift Power™ generator system
| Capacity | 660lbs Unrestricted, 1000lbs Restricted |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
| Machine Width and Length | S-80 XC: 8ft 2 in, 37 ft 7 in / S-85 XC: 8 ft 2 in, 40 ft 7 in | S-80 XC: 2.49 m, 11.3 m / S-85 XC: 2.49 m, 12.37 m |
|---|---|
| Below Ground Reach | S-80 XC: 5 ft 6 in / S-85 XC: 8 ft 8 in | S-80 XC: 1.68m / S-85 XC: 2.64 m |
| Max Horizontal Reach | S-80 XC: 68 ft 6 in / S-85 XC: 74 ft 6 in | S-80 XC: 20.88 m / S-85 XC: 22.71 m |
| Max Working Height | S-80 XC: 86 ft / S-85 XC: 91 ft | S-80 XC: 26.38 m / S-85 XC: 27.91 m |
Options
Chassis Options
- Tow package
Tire Options
- Rough terrain, foam-filled tires (petroleum based)
- Rough terrain, non-marking, foam-filled tires (water based)
- Rough terrain, non-marking, foam-filled tires (petroleum based)
Engine Options
- 70 hp GM Vortec 3.0L Gas/LPG Dual Fuel
- Diesel air intake pre-cleaner
- Cold weather recirc kit: 5W-40 synthetic engine oil, oil pan heater, battery heater, platform manifold recirculation and hydraulic tank heater
Lift/Turntable Options
- Specialty hydraulic oil (60 gal – cold weather, fire resistant, or biodegradable)
- LPG tank, 33.5 lb. capacity: duel fuel engine only
- Hostile environment kit: cylinder bellows, boom wiper seals, platform and ground control box covers
- Deluxe hostile environment kit: hostile environment kit, ring gear guard, cable track cable/hose cover, air pre-cleaner
Platforms
- 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
- 6 ft. dual entry platform with side swing gate
Platform Options
- Lift Power™ 3kW AC generator, 110V/60Hz or 220V/50Hz
- Air line to platform: ½ in. inner diameter
- Light package: 2 chassis mounted drive lights and 2 platform mounted work lights
- Lockable platform and ground control box covers
- Panel cradle package
- Platform auxiliary top rail
- Thumb rocker steering
- Lift Power™ 12kW Welder – Select Lincoln or Miller
- Lift Power™ 12kW Welder Ready package
- Traveling fall arrest anchor system: requires 6ft platform
- Traveling fall arrest anchor system: requires 8ft platform
Models and Specifications
Overview
Options
Chassis Options
- Tow package
Tire Options
- Rough terrain, foam-filled tires (petroleum based)
- Rough terrain, non-marking, foam-filled tires (water based)
- Rough terrain, non-marking, foam-filled tires (petroleum based)
Engine Options
- 70 hp GM Vortec 3.0L Gas/LPG Dual Fuel
- Diesel air intake pre-cleaner
- Cold weather recirc kit: 5W-40 synthetic engine oil, oil pan heater, battery heater, platform manifold recirculation and hydraulic tank heater
Lift/Turntable Options
- Specialty hydraulic oil (60 gal – cold weather, fire resistant, or biodegradable)
- LPG tank, 33.5 lb. capacity: duel fuel engine only
- Hostile environment kit: cylinder bellows, boom wiper seals, platform and ground control box covers
- Deluxe hostile environment kit: hostile environment kit, ring gear guard, cable track cable/hose cover, air pre-cleaner
Platforms
- 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
- 6 ft. dual entry platform with side swing gate
Platform Options
- Lift Power™ 3kW AC generator, 110V/60Hz or 220V/50Hz
- Air line to platform: ½ in. inner diameter
- Light package: 2 chassis mounted drive lights and 2 platform mounted work lights
- Lockable platform and ground control box covers
- Panel cradle package
- Platform auxiliary top rail
- Thumb rocker steering
- Lift Power™ 12kW Welder – Select Lincoln or Miller
- Lift Power™ 12kW Welder Ready package
- Traveling fall arrest anchor system: requires 6ft platform
- Traveling fall arrest anchor system: requires 8ft platform
