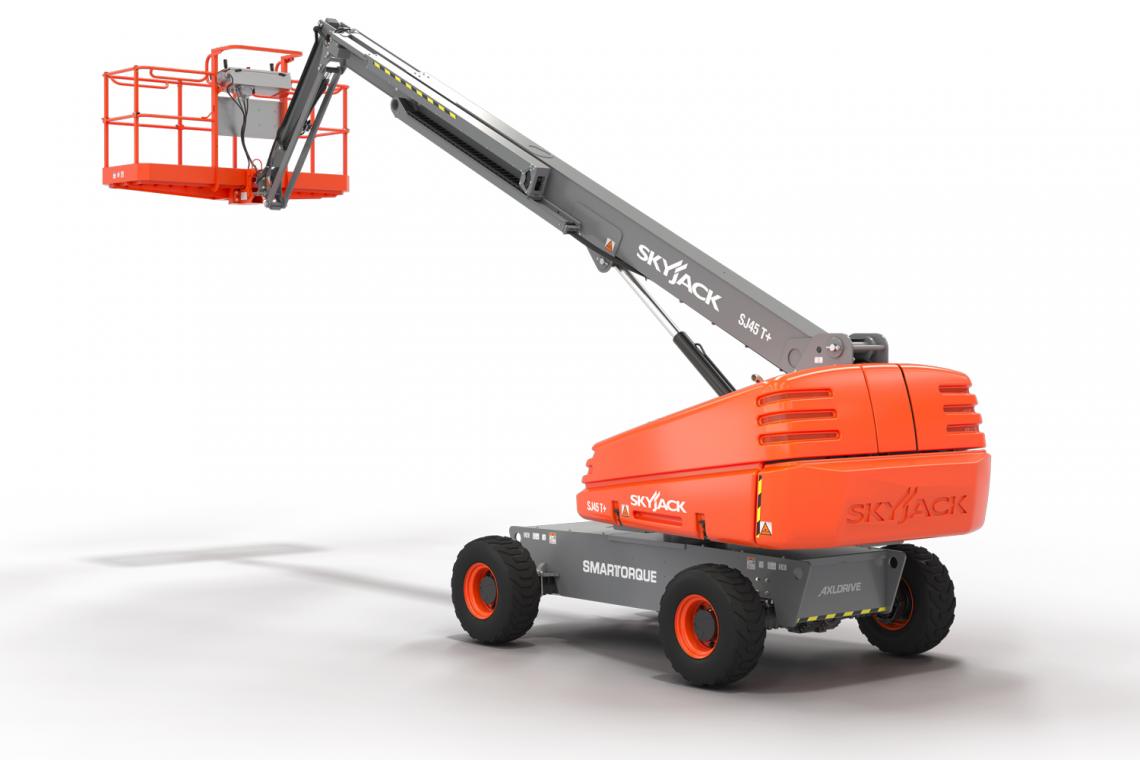

SJ40/45 T+
New Equipment / Aerial Lifts / SJ40/45 T+
SJ40/45 T+
Location:
Unit:
Price: Contact for price
Re-Visualized, Re-Powered, Return
Our new 40ft and 60ft booms have been redesigned to improve customer return by using SMARTORQUE™ technology and data-driven design.
SMARTORQUE™ utilizes optimized gearing, and a simplified, high-efficiency hydraulics package, so these models can employ 25hp engines to deliver similar on-site job performance as higher powered units. With these changes, rental companies can quickly improve their return on investment.
- Hydraulic oil cooler
- Side spring hinged entry gate
- 3.5 kw generator
- Welder package
- Non destructive testing
- Positive air shut-off valve
- Boom pipe rack
- Control box cover
- Auxiliary top rail
- Elevate
- Tool caddy
- Glazier kit
- Tire options
- Arctic weather package
- 36” x 72” platform
- Flashing light
- Welder ready
- Cold weather package
| Capacity |
| Load Weight |
| Max Lift Height |
| Power | Kubota D1305 - 24.8 HP (18.5 KW) |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |

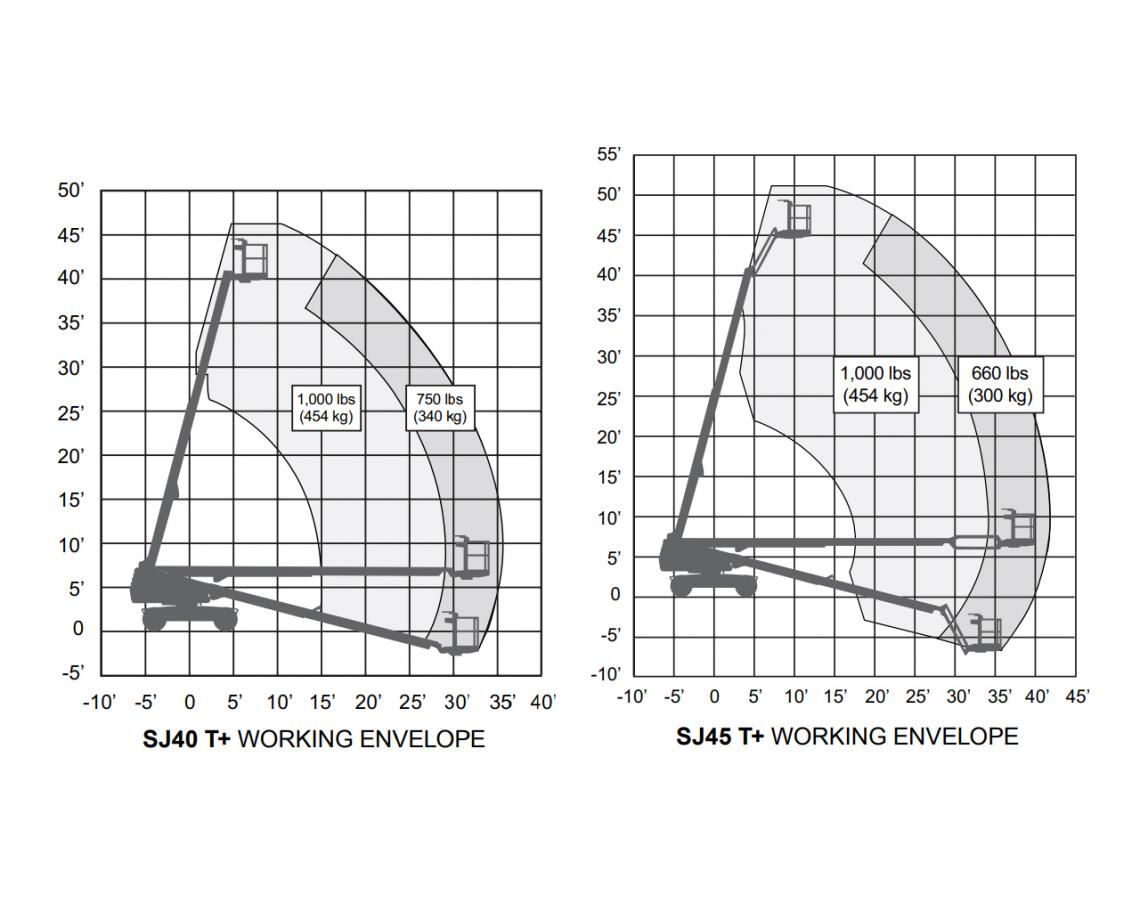

Models and Specifications
| SJ40 T+ | SJ45 T+ | |
|---|---|---|
| Work Height | 46’ 7” (14.20 m) | 51’ 1.5” (15.58 m) |
| Platform Height | 40’ 7” (12.37 m) | 45’ 1.5” (13.75 m) |
| Platform Size | 36” x 96” (0.91 x 2.44 m) | 36” x 96” (0.91 x 2.44 m) |
| Stowed Width | 7′ 6” (2.29 m) | 7′ 6” (2.29 m) |
| Tailswing | 3′ 8” (1.12 m) | 3′ 8” (1.12 m) |
| Stowed Height | 7′ 10.5″ (2.40 m) | 7′ 10.5″ (2.40 m) |
| Transportation Height | – | 9′ 7″ (2.92 m) |
| Stowed Length | 25′ 4.25” (7.73 m) | 28’ 11.5” (8.83 m) |
| Transportation Length | – | 22′ 11″ (6.99 m) |
| Ground Clearance | 10.75” (0.27 m) | 10.75” (0.27 m) |
| Wheelbase | 8′ (2.44 m) | 8′ (2.44 m) |
| Rotation | 360° Continuous | 360° Continuous |
| Platform Rotation | 170° | 170° |
| Jib Length | – | 5’ (1.52 m) |
| Jib Range +/- | – | +65° / -60° |
| Weight | 14,805 lbs (6,715 kg) | 15,780 lbs (7,160 kg) |
| Gradeability | 40% | 40% |
| Turning Radius (Inside) | 7′ 6” (2.24 m) | 7′ 6” (2.24 m) |
| Turning Radius (Outside) | 17′ (5.18 m) | 17′ (5.18 m) |
| Axle Oscillation | 5” (12.70 cm) | 5” (12.70 cm) |
| Drive Speed (High speed) | 2.5 mph (4.0 km/h) | 2.5 mph (4.0 km/h) |
| Capacity | 750 / 1,000 lbs (340 / 454 kg) | 660 / 1,000 lbs (300 / 454 kg) |
| Horizontal Reach | 33’ 11″ (10.34 m) | 39’ 8.25” (12.10 m) |
| Maximum # of Persons | 2 / 3 | 2 / 3 |
| Wind Rating | 28 mph (12.5 m/s) | 28 mph (12.5 m/s) |
| Tire Type | Solid | Solid |
| Diesel Engine | Kubota D1305 – 24.8 HP (18.5 KW) | Kubota D1305 – 24.8 HP (18.5 KW) |
| Fuel Tank | 45 gal. (170 L) | 45 gal. (170 L) |
| Hydraulic Reservoir | 59 gal. (223 L) | 59 gal. (223 L) |
