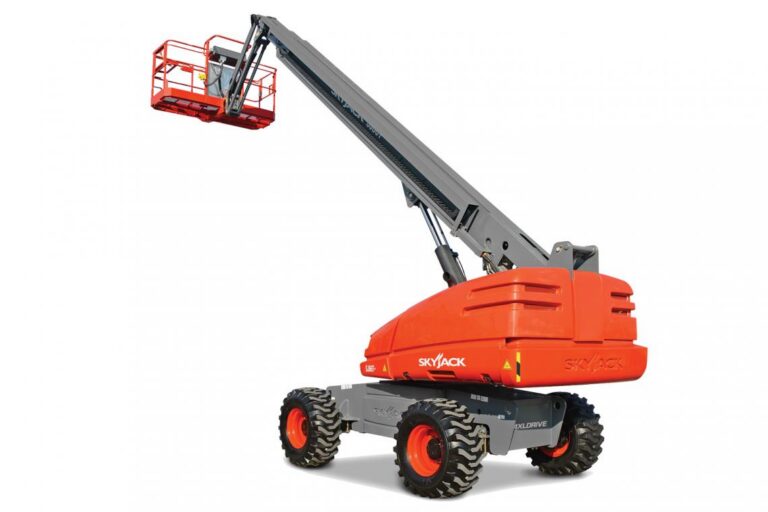

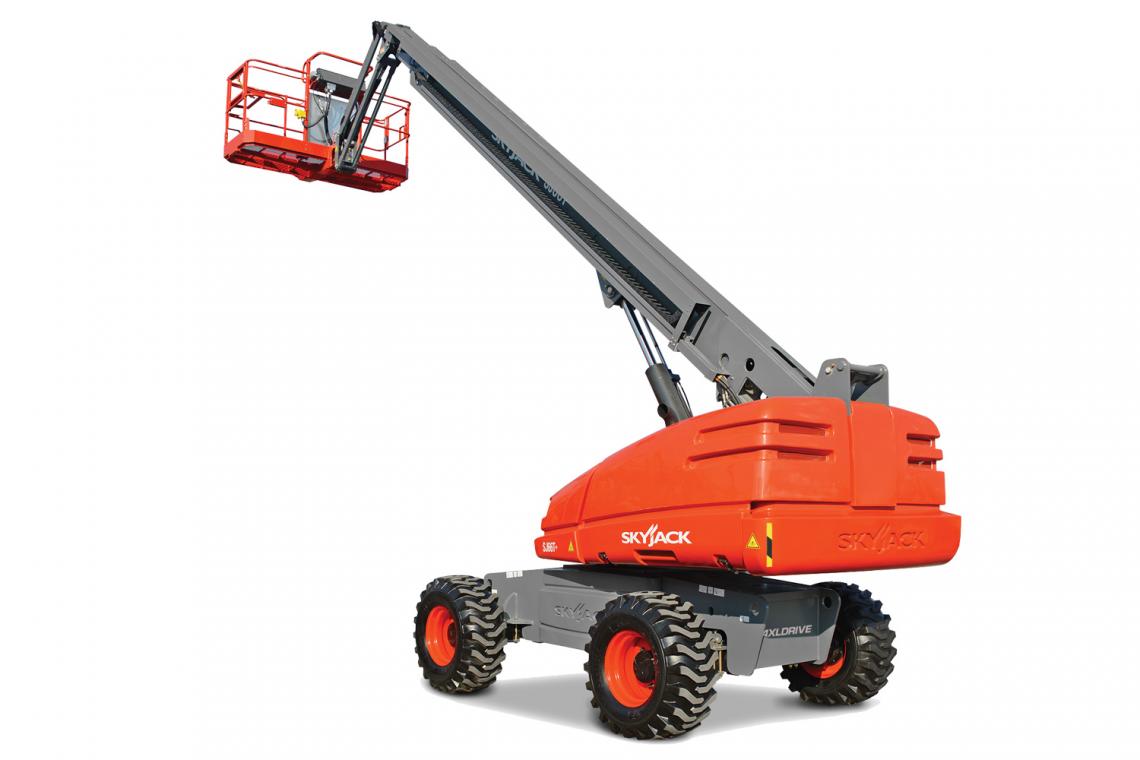

SJ61/66 T+
New Equipment / Aerial Lifts / SJ61/66 T+
SJ61/66 T+
Location:
Unit:
Price: Contact for price
Precise Positioning
Skyjack telescopic booms are ideal when extended horizontal and vertical outreach are key for the job site. These offer precise positioning paired with high capacity platforms and industry-leading reach.
- Tire options
- Tool caddy
- Control box cover
- Welder ready
- 3.5 kw generator
- Cold weather package
- Bio oil
- Welder package
- Side spring hinged entry gate
- Flashing light
- Auxiliary top rail
- 36” x 72” platform
- Elevate
- Hydraulic oil cooler
- Arctic weather package
- Glazier kit
- Positive air shut-off valve
| Capacity |
| Load Weight |
| Max Lift Height |
| Power | Deutz TD2.9L - 74 HP (55 KW) |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |

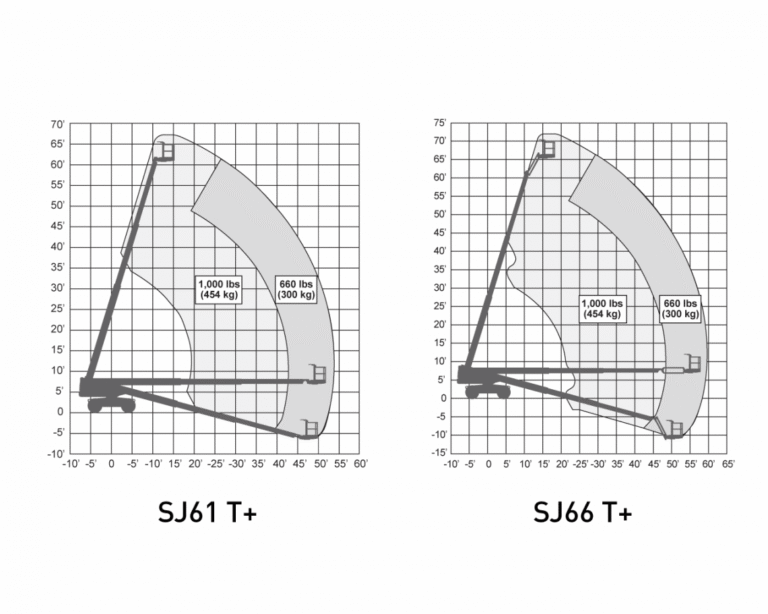

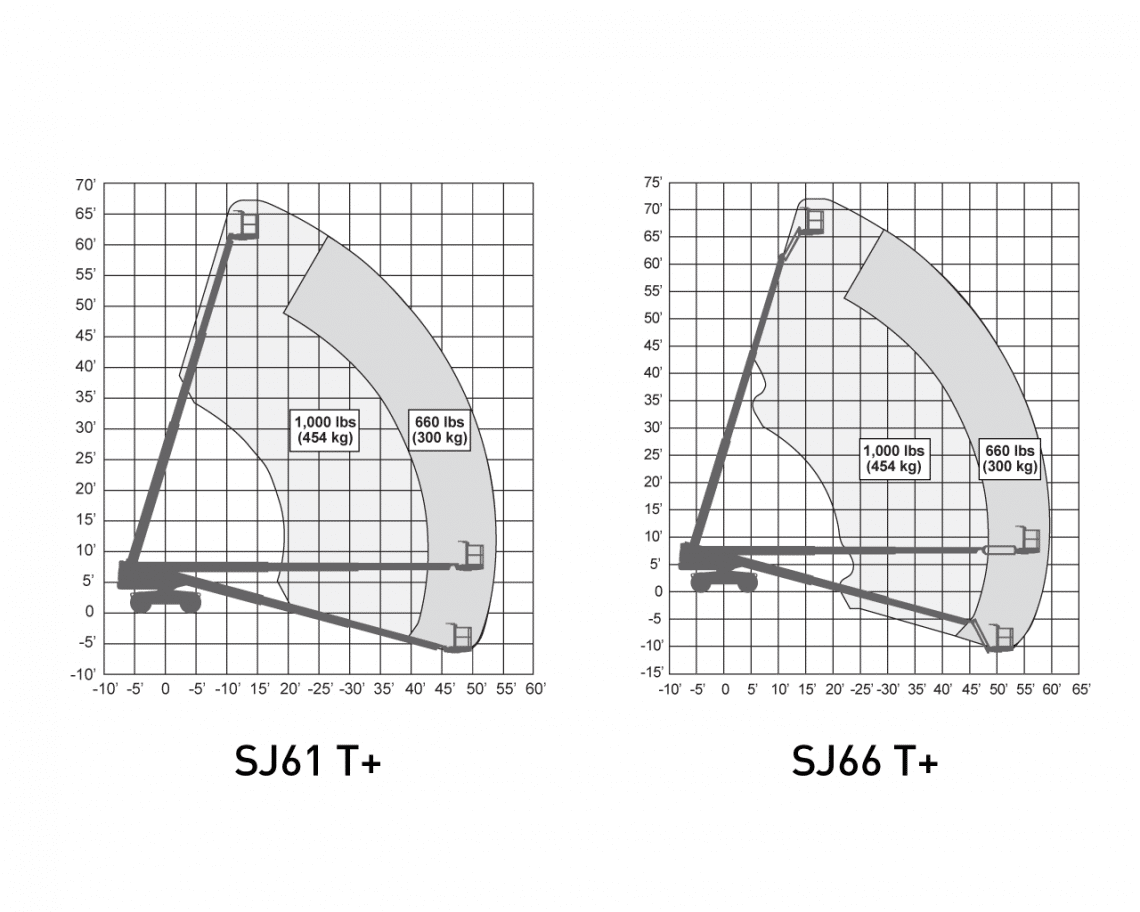

Models and Specifications
| SJ61 T+ | SJ66 T+ | |
|---|---|---|
| Work Height | 67’ 8” (20.62 m) | 72’ 3″ (22.02 m) |
| Platform Height | 61’ 8” (18.80 m) | 66’ 3″ (20.19 m) |
| Up and Over Height | – | – |
| Platform Size | 36” x 96” (0.91 x 2.44 m) | 36” x 96” (0.91 x 2.44 m) |
| Stowed Width | 8′ (2.44 m) | 8′ (2.44 m) |
| Tailswing | 4′ 4″ (1.33 m) | 4′ 4” (1.33 m) |
| Stowed Height | 8′ 6” (2.59 m) | 8′ 6” (2.59 m) |
| Transportation Height | – | 10′ 10” (3.30 m) |
| Stowed Length | 30’ 3.75” (9.24 m) | 34′ 1.5” (10.40 m) |
| Transportation Length | – | 26′ 8” (8.13 m) |
| Ground Clearance | 14.25” (0.36 m) | 14.25” (0.36 m) |
| Wheelbase | 8′ (2.44 m) | 8′ (2.44 m) |
| Rotation | 360° Continuous | 360° Continuous |
| Platform Rotation | 170° | 170° |
| Jib Length | – | 5’ (1.52 m) |
| Jib Range +/- | – | +65° / -60° |
| Weight | 25,050 lbs (11,365 kg) | 27,745 lbs (12,585 kg) |
| Gradeability | 50% | 50% |
| Turning Radius (Inside) | 6′ 4″ (1.93 m) | 6′ 4″ (1.93 m) |
| Turning Radius (Outside) | 16′ 7″ (5.05 m) | 16′ 7″ (5.05 m) |
| Axle Oscillation | 3.5” (8.89 cm) | 3.5” (8.89 cm) |
| Drive Speed (High speed) | 4.5 mph (7.2 km/h) | 4.5 mph (7.2 km/h) |
| Capacity | 660 / 1000 lbs (300 / 454 kg) | 660 / 1000 lbs (300 / 454 kg) |
| Horizontal Reach | 51’ 3” (15.62 m) | 57’ 0.25″ (17.38 m) |
| Maximum # of Persons | 2 / 3 | 2 / 3 |
| Wind Rating | 28 mph (12.5 m/s) | 28 mph (12.5 m/s) |
| Tire Type | Foam-Filled | Foam-Filled |
| Tire Size | 15 x 19.5 | 15 x 19.5 |
| Diesel Engine | Deutz TD2.9L – 74 HP (55 KW) | Deutz TD2.9L – 74 HP (55 KW) |
| Dual Fuel Engine | Kubota WG2503 – 61 HP (45 KW) | Kubota WG2503 – 61 HP (45 KW) |
| Fuel Tank | 45 gal. (170 L) | 45 gal. (170 L) |
| Hydraulic Reservoir | 60 gal. (227 L) | 60 gal. (227 L) |
Overview
