SJ82/86 T
New Equipment / Aerial Lifts / SJ82/86 T
SJ82/86 T
Location:
Unit:
Price: Contact for price
Precise Positioning

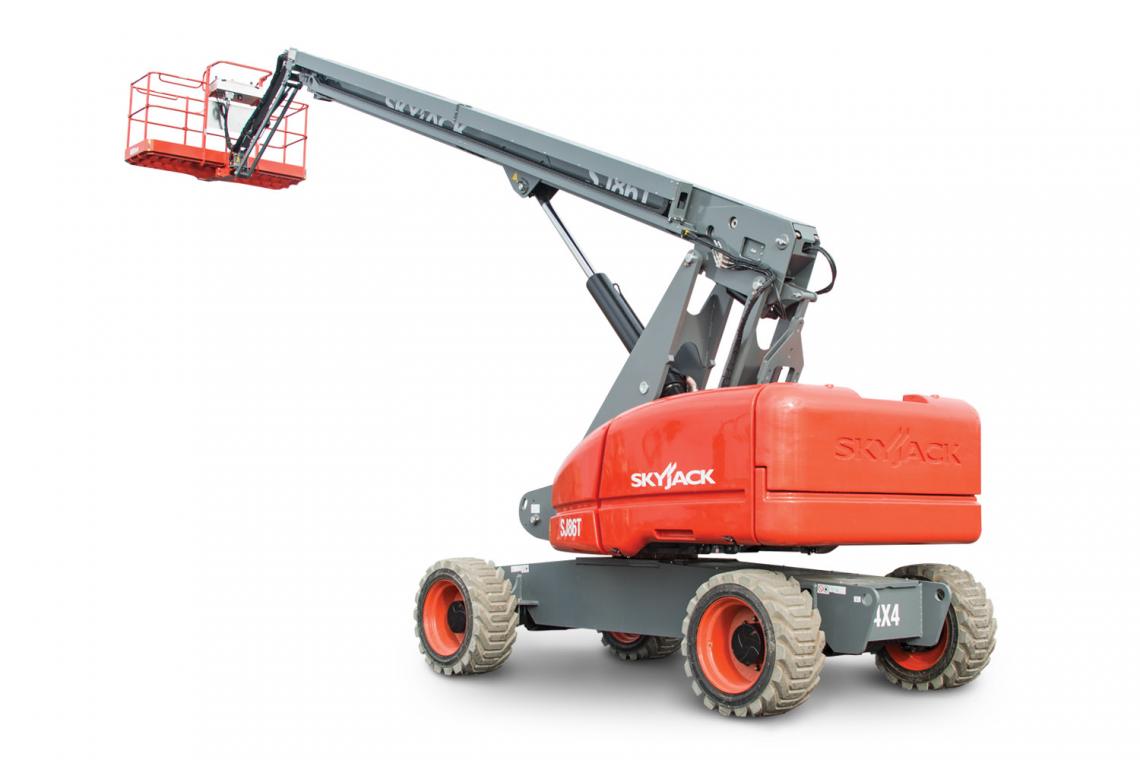

Skyjack telescopic booms are ideal when extended horizontal and vertical outreach are key for the job site. These offer precise positioning paired with high capacity platforms and industry-leading reach.
- Glazier kit
- Flashing light
- Elevate
- 36” x 72” platform
- Auxiliary top rail
- Cold weather package
- Hydraulic oil cooler
- Tool caddy
- Welder ready
- Extended warranties
- Arctic weather package
- Control box cover
- Non destructive testing
- Bio oil
- Tire options
- Side gate
- Hostile environment package
- Platform work lights
- Welder package
- Boom pipe rack
- 3.5 kw generator
- ½” airline to platform
- Secondary guarding – sge electrical
- Secondary guarding – sgm mechanical
- Positive air shut-off valve
| Capacity |
| Load Weight |
| Max Lift Height |
| Power | 74 HP |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |

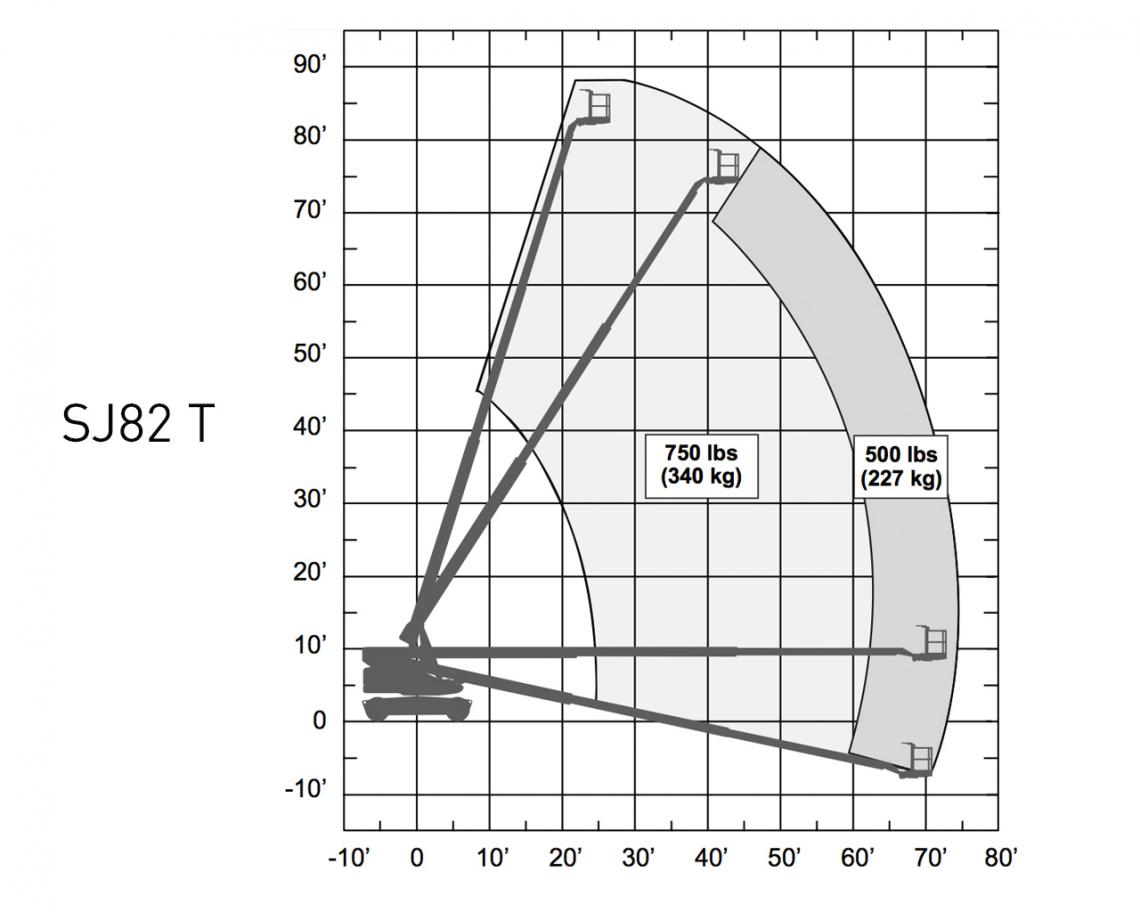

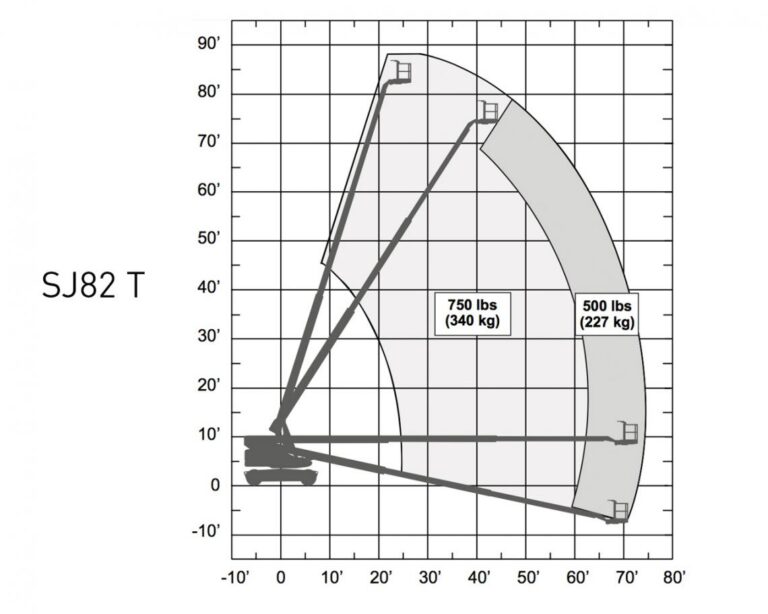

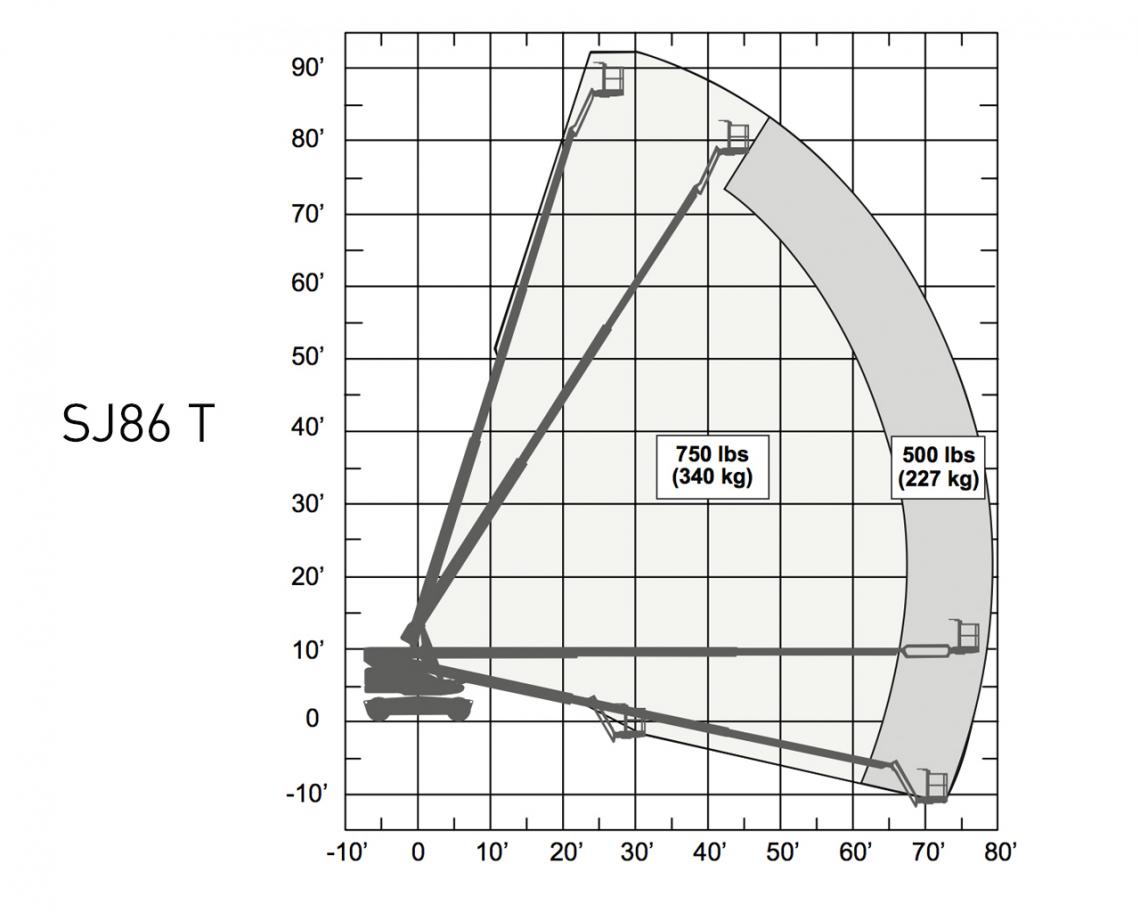

Models and Specifications
| SJ82 T | SJ86 T | |
|---|---|---|
| Work Height | 88’ (26.82 m) | 92’ (28.04 m) |
| Platform Height | 82’ (24.99 m) | 86’ (26.21 m) |
| Up and Over Height | – | – |
| Platform Size | 36” x 96” (0.91 x 2.44 m) | 36” x 96” (0.91 x 2.44 m) |
| Stowed Width | 8′ 2” (2.49 m) | 8′ 2″ (2.49 m) |
| Tailswing | 4′ 8” (1.42 m) | 4′ 8″ (1.42 m) |
| Stowed Height | 9′ 10” (3.00 m) | 9′ 10″ (3.00 m) |
| Transportation Height | 10′ 3″ (3.13 m) | |
| Stowed Length | 37’ 10” (11.53 m) | 42’ 6″ (12.95 m) |
| Transportation Length | 10.59 m | |
| Ground Clearance | 16” (0.41 m) | 16” (0.41 m) |
| Wheelbase | 11′ (3.35 m) | 11′ (3.35 m) |
| Rotation | 360° Continuous | 360° Continuous |
| Platform Rotation | 170° | 170° |
| Jib Length | – | 5’6” (1.68 m) |
| Jib Range +/- | – | +65° / -60° |
| Weight | 37,600 lb (17,055 kg) | 38,000 lbs (17,237 kg) |
| Gradeability | 45% | 45% |
| Turning Radius (Inside) | 11′ 6” (3.51 m) | 11′ 6” (3.51 m) |
| Turning Radius (Outside) | 21′ (6.40 m) | 21′ (6.40 m) |
| Axle Oscillation | 4” (10.16 m) | 4” (10.16 m) |
| Drive Speed (Stowed) | 3 mph (4.8 km/h) | 3 mph (4.8 km/h) |
| Capacity | 500 lbs (227 kg) / 750 lbs / (341 kg) | 500 lbs (227 kg) / 750 lbs / (341 kg) |
| Horizontal Reach | 72’ 6” (22.10 m) | 76’ 10” (23.42 m) |
| Local Floor Load (With Rated Load) | 175 psi (12.30 kg/sq cm) | 175 psi (12.30 kg/sq cm) |
| Overall Floor Load (With Rated Load) | 325 psf (1,587 kg/sq m) | 330 psf (1,611 kg/sq m) |
| Maximum # of Persons | 2/3 | 2/3 |
| Wind Rating | 28 mph (12.5 m/s) | 28 mph (12.5 m/s) |
| Tire Type | Foam Filled | Foam Filled |
| Tire Size | 18-625 | 18-625 |
| Diesel Engine | 74 HP | 74 HP |
| Fuel Tank | 45 gallon (170 L) | 45 gallon (170 L) |
| Hydraulic Reservoir | 60 gallon (227 L) | 60 gallon (227 L) |
Overview
