SX-135 XC
New Equipment / Aerial Lifts / SX-135 XC
SX-135 XC
Location:
Unit:
Price: Contact for price

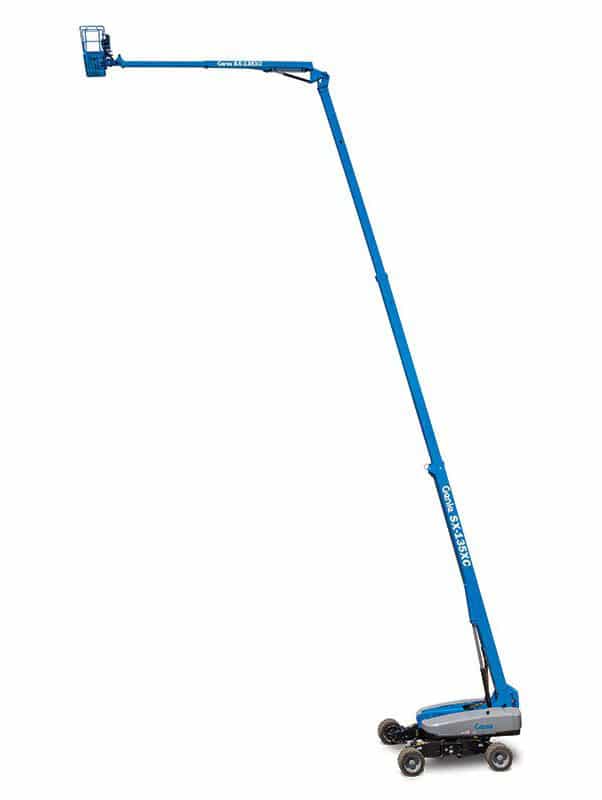

The Genie® SX-135 XC™ telescopic boom delivers industry-leading outreach and capacity through the full working envelope for incredible operational versatility and accessibility. It boasts 660 lb/1,000 lb (300/454 kg)** dual platform capacity with a smooth range of motion envelope to lift heavy loads in the most challenging jobsite applications.
Overview
- Industry-leading 90 ft (27.43 m) of maximum outreach
- Increased range of motion with 18 – 30 ft (5.48 – 9.14 m) Telescoping Jib-Extend™ and 125° of jib articulation
- Load sense technology for accurate load weighing and zero-load field calibration
- Extended reach out and down capability with 19 ft 1 8n (5.99 m) of reach below grade
** Maximum outreach zone / maximum capacity zone.
| Capacity | 660lbs Unrestricted, 1000lbs Restricted |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
| Max Horizontal Reach | 90 ft | 27.43 m |
|---|---|
| Machine Width and Length | 12 ft 11 in / 64 ft 10 in | 3.94 m / 19.76 m |
| Below Ground Reach | 19 ft 8 in | 6.00 m |
| Max Working Height | 141 ft | 43.15 m |
Options
Engine Options
- Diesel intake air pre-cleaner
- Cold weather recirc kit: 5W-40 Synthetic engine oil, oil pan heater, battery heater, control board heater, platform manifold recirculation, and hydraulic tank heater
Lift/Turntable Options
- Hostile environment kit: cylinder bellows, boom wiper seals,
- LCD heater, platform manifold recirculation, and hydraulic tank heater
- Specialty hydraulic oil (138 gal – cold weather, fire resistant, or biodegradable)
Platforms
- 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
- 6 ft. dual entry platform with side swing gate
Platform Options
- AC generator, 110V/60Hz or 220V/50Hz, 3000W, hydraulically driven
- Air line to platform
- Light package: 2 platform mounted work lights
- Lockable platform control box cover
- Thumb rocker steering
- Welder package, 7.5kW generator – Select Lincoln or Miller
- Welder package, 12kW generator – Select Lincoln or Miller
- Welder ready package: 7.5kW generator
- Welder ready package: 12kW generator
- Traveling fall arrest anchor system: requires 6ft platform
- Traveling fall arrest anchor system: requires 8ft platform
Models and Specifications
Overview
Options
Engine Options
- Diesel intake air pre-cleaner
- Cold weather recirc kit: 5W-40 Synthetic engine oil, oil pan heater, battery heater, control board heater, platform manifold recirculation, and hydraulic tank heater
Lift/Turntable Options
- Hostile environment kit: cylinder bellows, boom wiper seals,
- LCD heater, platform manifold recirculation, and hydraulic tank heater
- Specialty hydraulic oil (138 gal – cold weather, fire resistant, or biodegradable)
Platforms
- 6 ft. dual entry or 8 ft. tri entry platform with ½ height mesh inserts and side swing gate
- 6 ft. dual entry platform with side swing gate
Platform Options
- AC generator, 110V/60Hz or 220V/50Hz, 3000W, hydraulically driven
- Air line to platform
- Light package: 2 platform mounted work lights
- Lockable platform control box cover
- Thumb rocker steering
- Welder package, 7.5kW generator – Select Lincoln or Miller
- Welder package, 12kW generator – Select Lincoln or Miller
- Welder ready package: 7.5kW generator
- Welder ready package: 12kW generator
- Traveling fall arrest anchor system: requires 6ft platform
- Traveling fall arrest anchor system: requires 8ft platform
