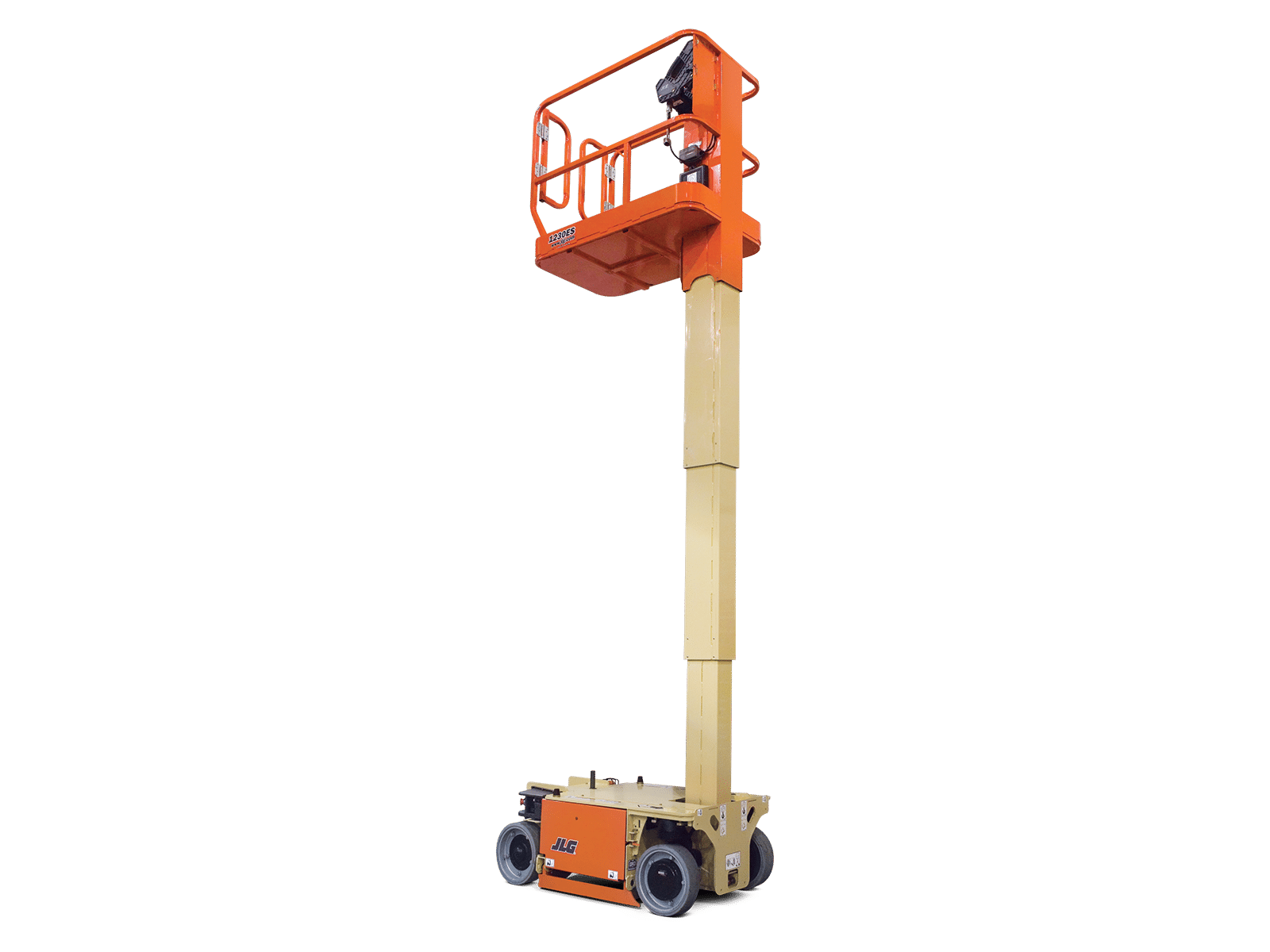

1230ES
New Equipment / Aerial Lifts / 1230ES
1230ES
Location:
Unit:
Price: Contact for price
Key Specs
- Platform Height: 12 ft / 3.66 m
- Machine Width: 2 ft 6 in. / 0.76 m
Key Features
- Low maintenance, energy efficient and environmentally clean
- Longer running time than any lift in its class keeps you on the job longer, increasing your productivity
- Lightweight design for transport in freight elevators
| Capacity | 500lbs |
| Load Weight |
| Max Lift Height | 12 ft / 3.66 m |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
| Machine Height | 5 ft 5 in. / 1.65 m |
|---|---|
| Drive System | 24V Electric, 8 hp |
| Drive Speed – Platform Lowered | 3 mph / 4.83 km/h |
| Tire Size | 100 x 323 (Solid, non-marking) |
| Platform Dimension A | 4 ft 2 in. / 1.26 m |
| Batteries | 4 x 6V, 220 amp-hr |
| Machine Length | 4 ft 6 in. / 1.37 m |
| Ground Clearance | 3 in. / 0.08 m |
| Gradeability | 25 % |
| Ground Entry Height | 1 ft 10 in. / 0.56 m |
| Drive Speed – Platform Elevated | 0.5 mph / 0.80 km/h |
| Working Height | 18 ft / 5.49 m |
| Platform Dimension B | 2 ft 3 in. / 0.69 m |
| Machine Weight | 1740 lb / 789.25 kg |
| Machine Width | 2 ft 6 in. / 0.76 m |
