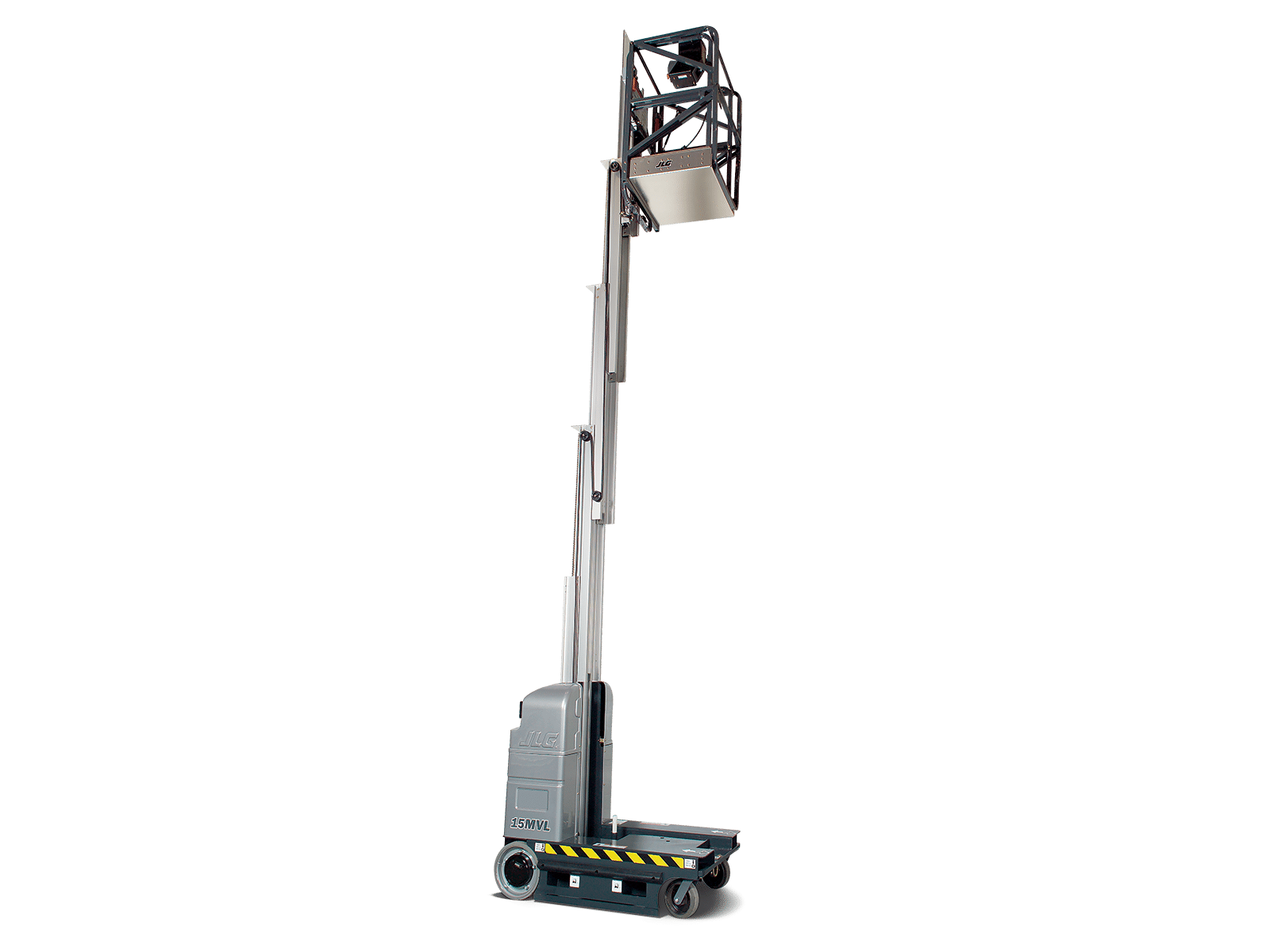

15MVL

JLG

Location:

Unit:

Price: Contact for price

Five platform options with exclusive “Quick Change” mountings for one-minute change-outs
Exclusive Point & Go^®single joystick control operates drive and steer, and lift and lower
Rigid mast for operator comfort and stability

Capacity

500lbs

Load Weight

Max Lift Height

15.3 ft / 4.66 m

Power

Environment

Primary Task

Industry

Model Year

Truck Type

Meter

Upright Lift / Lower Height

Upright Type

Attachments

Valve Type

Fork Length

Tire Type

Seat Type

Battery Condition

Transmission

Phases

Platform Dimension B	2 ft 4 in. / 0.71 m
Working Height	21 ft 4 in. / 6.5 m
Machine Length	4 ft 6 in. / 1.36 m
Drive Speed – Platform Elevated	0.6 mph / 0.97 km/h
Machine Height	6 ft 6 in. / 1.98 m
Batteries	Two Sealed 100 AH 12 Volt
Maximum Drive Height	15 ft 4 in. / 4.67 m
Drive Speed – Platform Lowered	3.5 mph / 5.63 km/h
Machine Width	2 ft 6 in. / 0.75 m
Wheel Size – Front Caster	8 x 2.5″
Machine Weight	2325 lb / 1054.60 kg
Ground Clearance	2 in. / 0.05 m
Gradeability	20 %
Ground Entry Height	1 ft 7 in. / 0.48 m
Platform Dimension A	2 ft 2 in. / 0.66 m
Drive System	4 Brush Direct Electric
Wheel Size – Rear	12.62 x 4″
