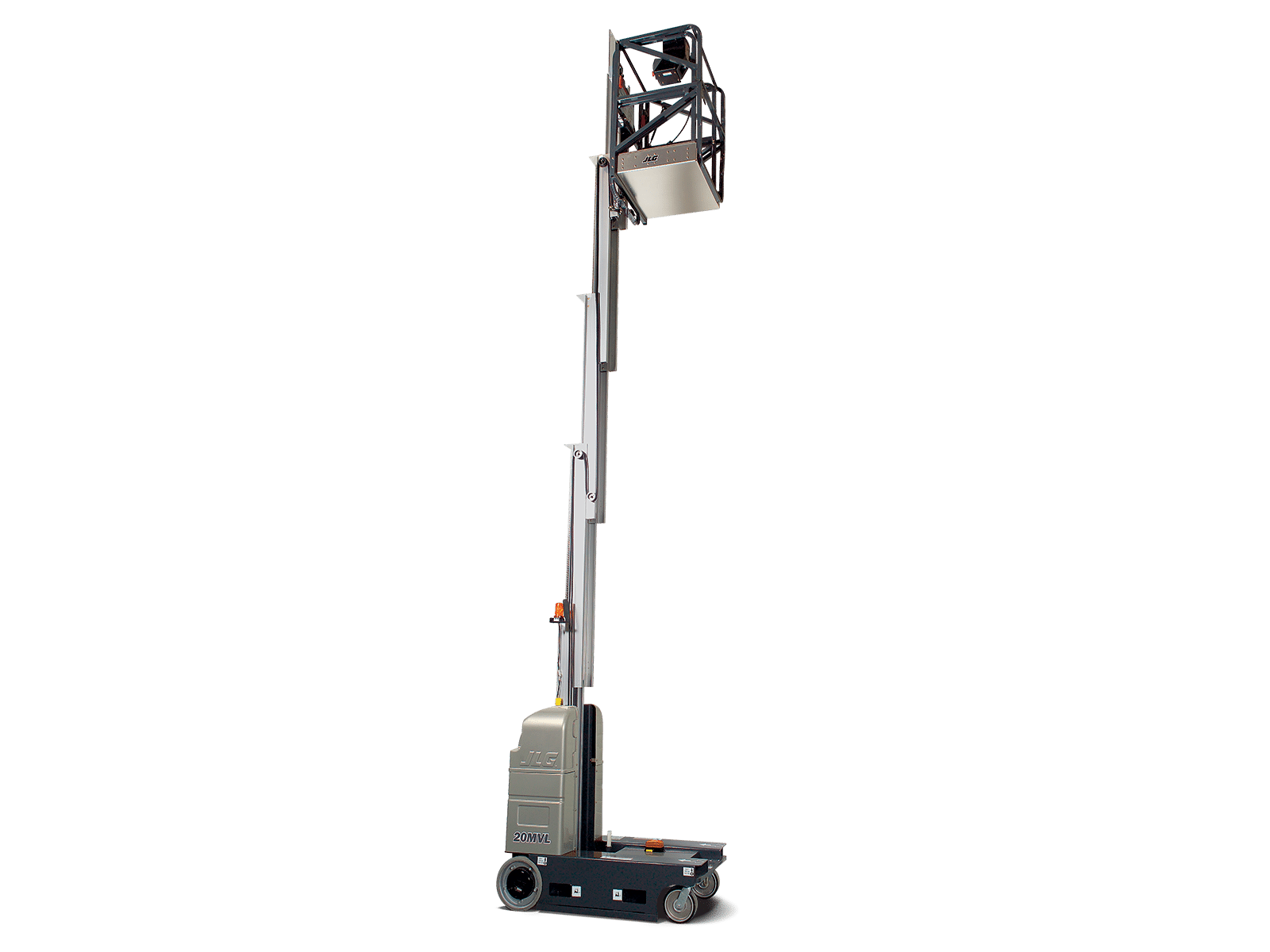

20MVL

JLG

Location:

Unit:

Price: Contact for price

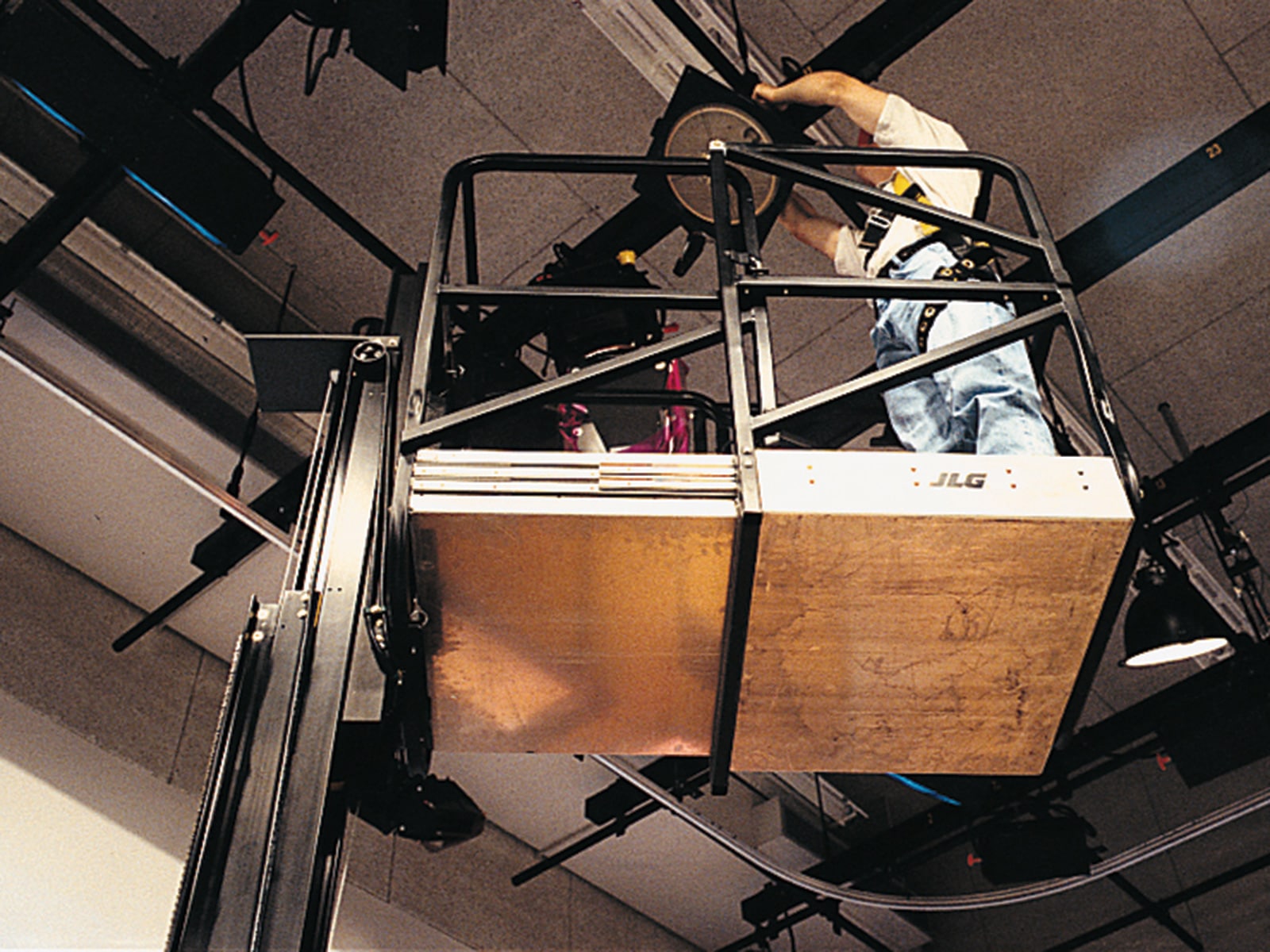

Five platform options with exclusive “Quick Change” mountings for one-minute change-outs
Exclusive Point & Go^® single joystick control operates drive and steer, and lift and lower
Rigid mast for operator comfort and stability

Capacity

350lbs

Load Weight

Max Lift Height

19.5 ft / 5.94 m

Power

Environment

Primary Task

Industry

Model Year

Truck Type

Meter

Upright Lift / Lower Height

Upright Type

Attachments

Valve Type

Fork Length

Tire Type

Seat Type

Battery Condition

Transmission

Phases

Machine Width	2 ft 6 in. / 0.75 m
Maximum Drive Height	19 ft 6 in. / 5.94 m
Drive System	4 Brush Direct Electric
Batteries	Two Sealed-100 AH 12 Volt
Drive Speed – Platform Lowered	3.5 mph / 5.63 km/h
Platform Dimension A	2 ft 2 in. / 0.66 m
Wheel Size – Rear	12.62 x 4″
Platform Dimension B	2 ft 4 in. / 0.71 m
Ground Clearance	2 in. / 0.05 m
Platform Height	19 ft 1 in. / 5.82 m
Gradeability	20 %
Machine Length	4 ft 6 in. / 1.36 m
Ground Entry Height	1 ft 6 in. / 0.46 m
Drive Speed – Platform Elevated	0.6 mph / 0.97 km/h
Machine Weight	2325 lb / 1054.60 kg
Machine Height	6 ft 6 in. / 1.98 m
Wheel Size – Front Caster	8 x 2.5″
Working Height	25 ft 1 in. / 7.65 m
