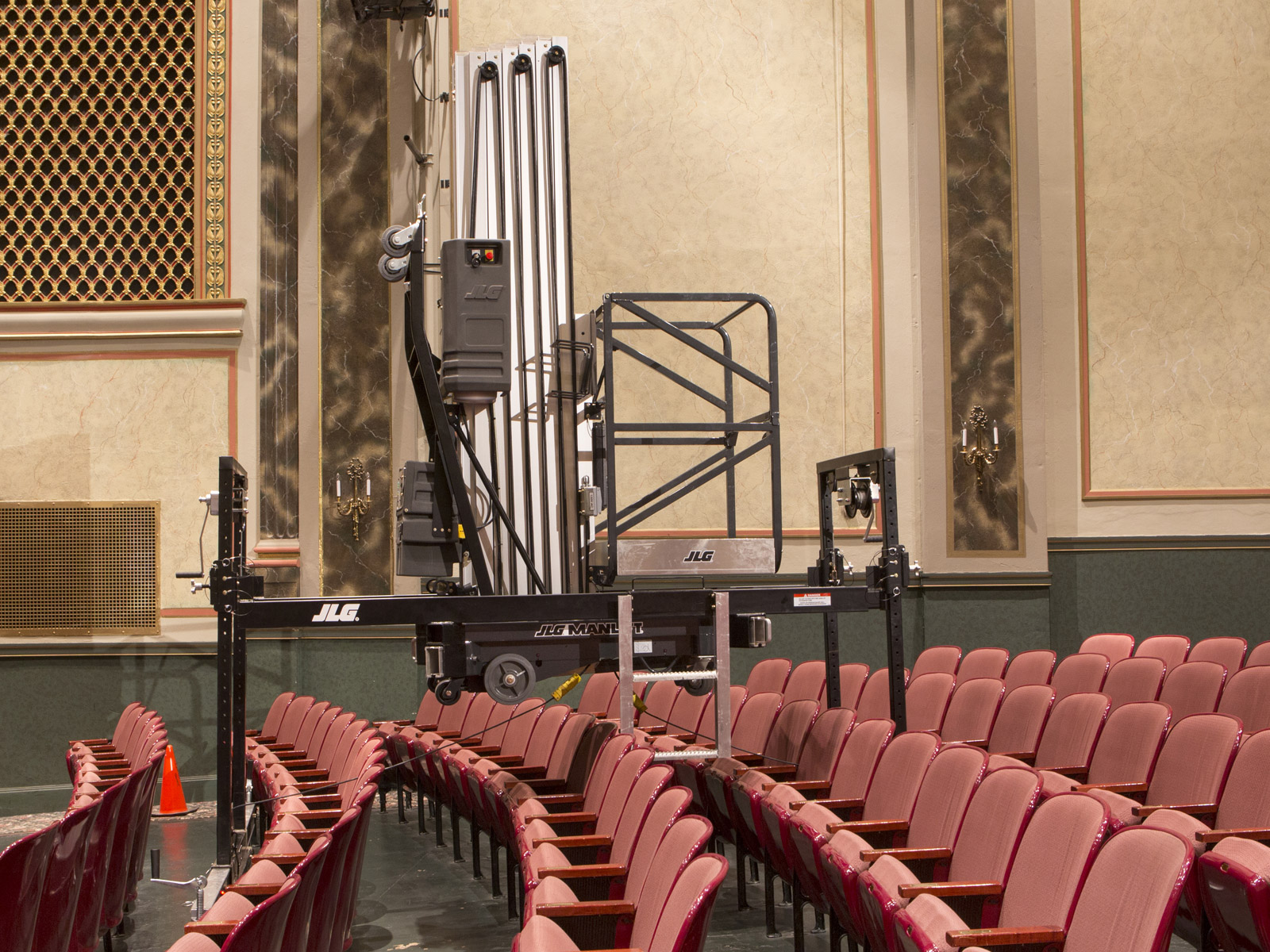

41AM
New Equipment / Aerial Lifts / 41AM
41AM
Location:
Unit:
Price: Contact for price
Key Specs
- Platform Height: 40 ft 9 in. / 12.42 m
- Machine Width: 2 ft 5 in. / 0.74 m
Key Features
- Most rigid mast in the industry for operator comfort and stability
- Six-wheel design for improved maneuverability
- Long battery duty cycles and an automatic charger for more productivity
| Capacity | 300lbs |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
| Wheel Size – Rear | 10 x 2″ |
|---|---|
| Platform Height | 40 ft 9 in. / 12.42 m |
| Platform Dimension B | 2 ft 2 in. / 0.65 m |
| Machine Length | 4 ft 10 in. / 1.46 m |
| Outriggers Up Max Lift Height | 40.8 ft / 12.44 m |
| Machine Weight-AC | 1100 lb / 498.95 kg |
| Machine Height | 8 ft 8 in. / 2.64 m |
| Platform Dimension A | 2 ft 2 in. / 0.66 m |
| Machine Width | 2 ft 5 in. / 0.74 m |
| Working Height | 47 ft / 14.33 m |
| Machine Weight-DC | 1230 lb / 557.92 kg |
| Outriggers or Stabilizers | Yes |
| Ground Entry Height | 1 ft 7 in. / 0.48 m |
| Outrigger Footprint Width | 6 ft 7 in. / 2.01 m |
| Wheel Size – Front Caster | 6 x 2″ |
