SJ12/16
New Equipment / Aerial Lifts / SJ12/16
SJ12/16
Location:
Unit:
Price: Contact for price
Zero-Emission

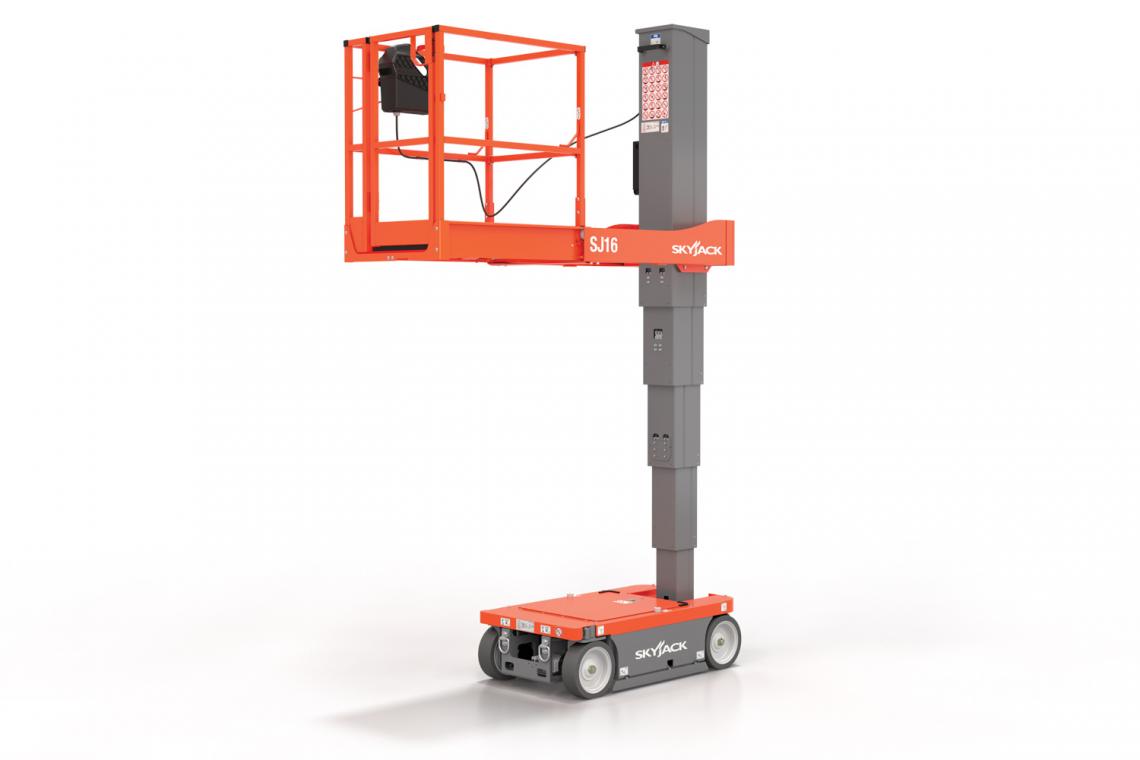

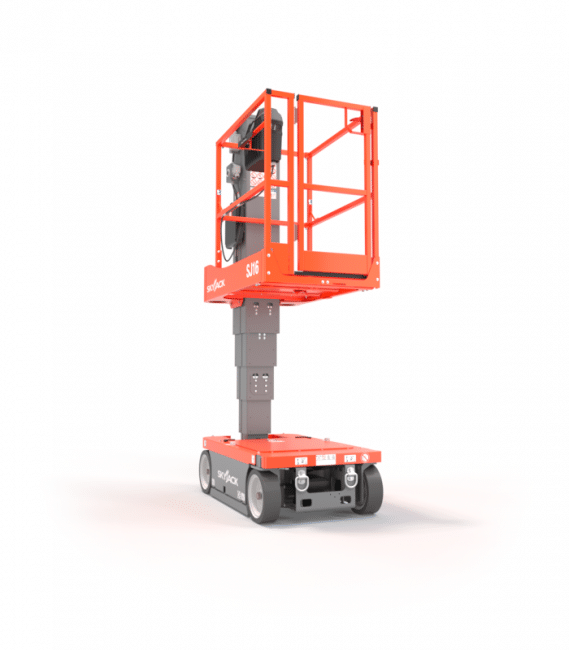

Skyjack vertical mast lifts offer an easy to service, low maintenance design in a compact and versatile package. These are zero emission, compact machines with low floor loading have the ability to go on elevators, making them ideal for multi-level job sites.
- SGLE
- Fluorescent tube carrier
- Light duty pipe / steel stud rack
- Non destructive testing
- Bio oil
- Elevate
- Dual flashing lights
- Saloon gate
- Tool tray
| Capacity |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |

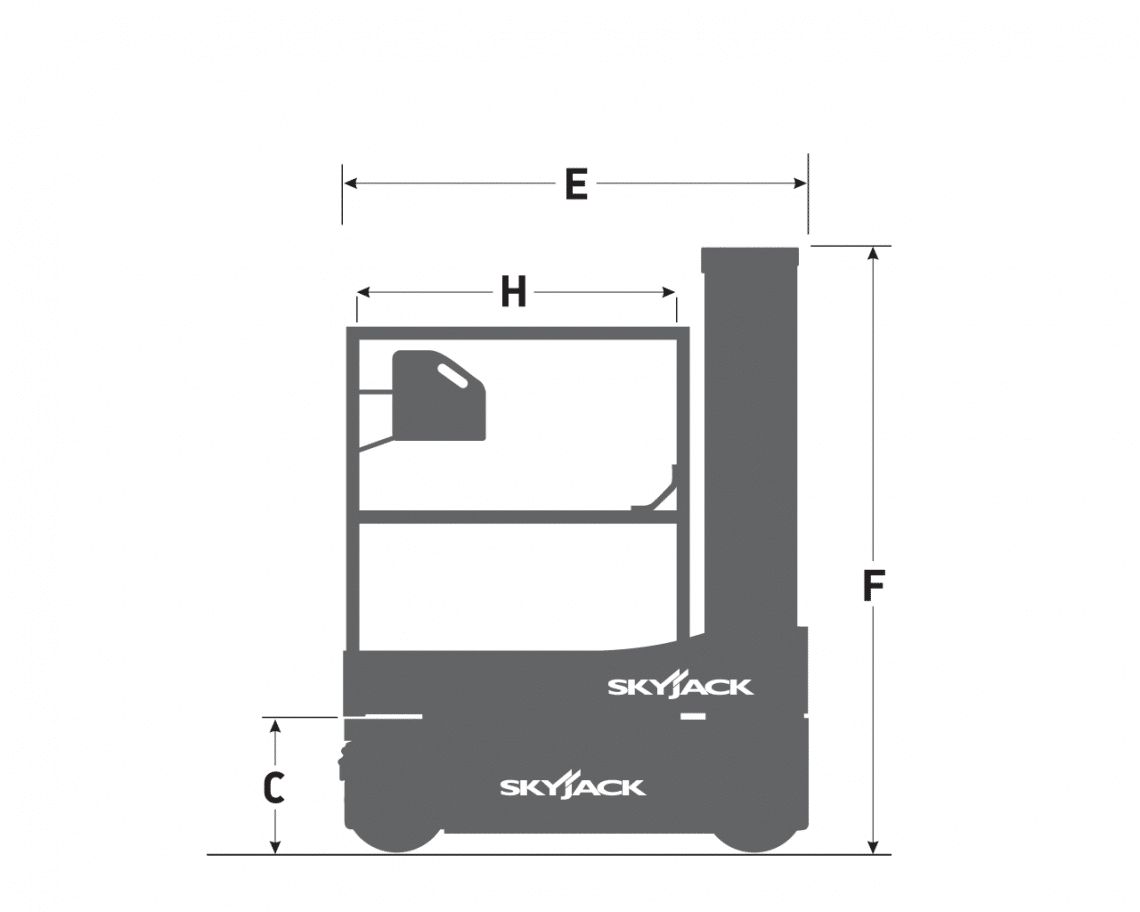

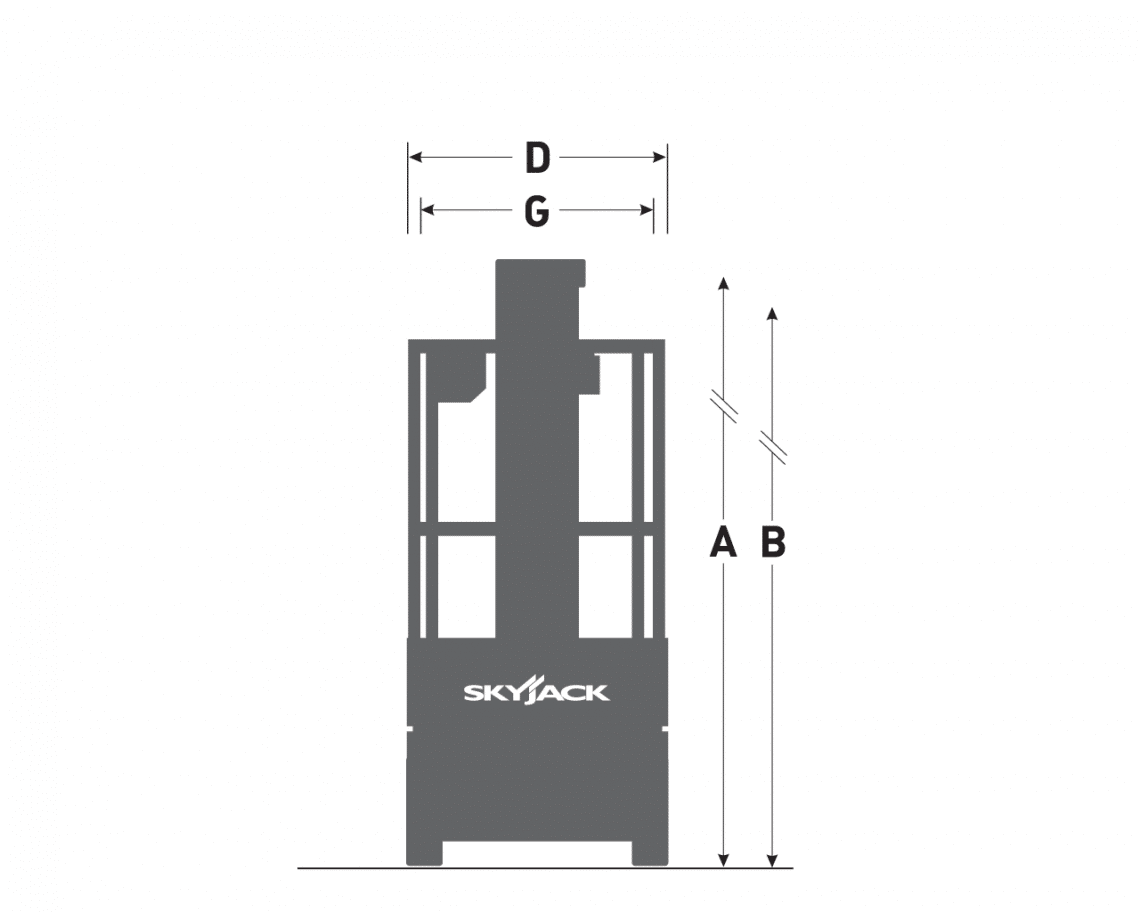

Models and Specifications
| SJ12 | SJ16 (NEW) | |
|---|---|---|
| Work Height | 18’ (5.48 m) | 21’ 7” (6.58 m) |
| Raised Platform Height | 12’ (3.65 m) | 15’ 7” (4.75 m) |
| Lowered Platform Height | 18” (0.46 m) | 18” (0.46 m) |
| Overall Width | 30.5” (0.78 m) | 30.5” (0.78 m) |
| Overall Length | 54” (1.37 m) | 54” (1.37 m) |
| Stowed Height | 70” (1.78 m) | 70” (1.78 m) |
| Platform Width (Inside Dimension) | 27” (0.69 m) | 27” (0.69 m) |
| Platform Length (Inside Dimension) | 33.5” (0.86 m) | 33.5” (0.86 m) |
| Ground Clearance (Stowed) | 2.1” (5.33 cm) | 2.1” (5.33 cm) |
| Ground Clearance (raised) | 0.50” (1.30 cm) | 0.50” (1.30 cm) |
| Wheelbase | 42” (1.07 m) | 42” (1.07 m) |
| Weight | 1,905 lbs (863 kg) | 2,160 lbs (980 kg) |
| Gradeability | 30% | 30% |
| Turning Radius (Inside) | 0 | 0 |
| Turning Radius (Outside) | 55” (1.40 m) | 55” (1.40 m) |
| Lift Time (With Rated Load) | 14 sec | 21 sec |
| Lower Time (With Rated Load) | 15 sec | 18 sec |
| Drive Speed (Stowed) | 2.5 mph (4.0 km/h) | 2.5 mph (4.0 km/h) |
| Drive Speed (Raised) | 0.5 mph (0.8 km/h) | 0.5 mph (0.8 km/h) |
| Maximum Drive Height | Full Height | Full Height |
| Capacity | 500 lbs (227 kg) | 500 lbs (227 kg) |
| Local Floor Load (With Rated Load) | 108 psi (745 kPa) | 128 psi (880 kPa) |
| Overall Floor Load (With Rated Load) | 213 psf (1040 kg/m2) | 236 psf (1152 kg/m2) |
| Maximum # of Persons | 2 | 1 |
| Tire Type | Solid, N/M | Solid, N/M |
| Tire Size | 12 x 4 x 8 | 12 x 4 x 8 |
Overview
