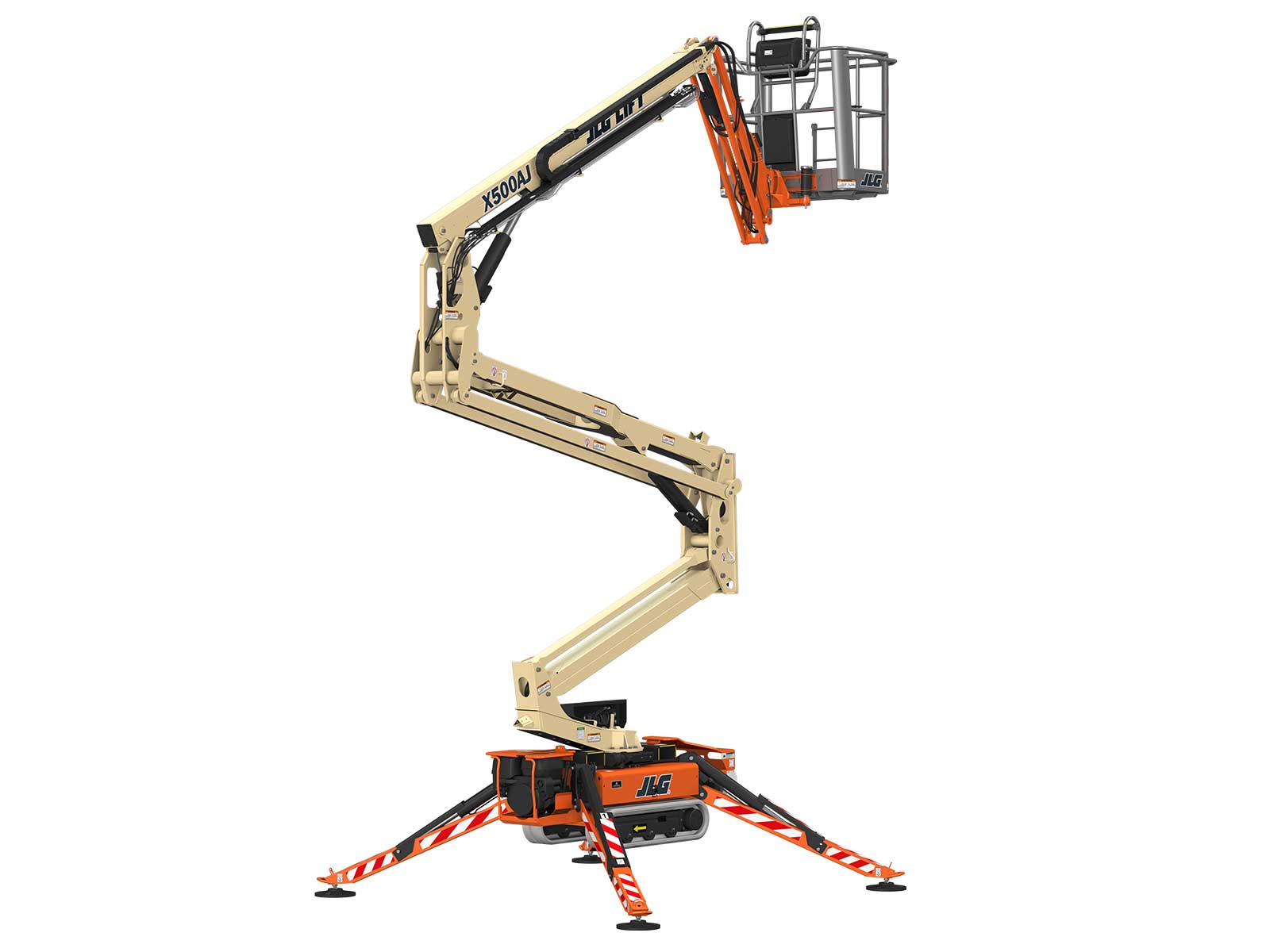

X500AJ
New Equipment / Aerial Lifts / X500AJ
X500AJ
Location:
Unit:
Price: Contact for price
Key Specs
- Machine Width: 2 ft 7 in. / 0.79 m
- Platform Capacity: 500 lb / 226.80 kg
Key Features
- Drive speed control for smooth operation on a variety of terrains
- 500 lb unrestricted platform capacity
- Regenerative valve on telescopic cylinder resulting 50% increase in speed
- Fits through a standard doorway
- Auto levels on uneven surfaces
- Fits through a standard doorway
- Auto levels on uneven surfaces
- Drive speed control for smooth operation on a variety of terrains
- 500 lb unrestricted platform capacity
- Regenerative valve on telescopic cylinder resulting 50% increase in speed
| Capacity | 500lbs |
| Load Weight |
| Max Lift Height |
| Power |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
| Platform Dimension A | 4 ft 10 in. / 1.47 m |
|---|---|
| Outriggers or Stabilizers | Yes |
| Slope Tolerance | 12 ° |
| Maximum Ground Bearing Pressure | 9.7 psi / 0.68 Kg/cm2 |
| Fuel Tank Capacity – Gasoline | 1.5 gal. / 5.68 L |
| Platform Height | 49 ft / 14.94 m |
| Outrigger Footprint Width | 10 ft 5 in. / 3.18 m |
| Swing | 360 Degrees |
| Track Length | 4 ft 1 in. / 1.24 m |
| Machine Length | 14 ft 10 in. / 4.52 m |
| Engine Type – Gasoline | Honda GX440 15 hp |
| Machine Width | 2 ft 7 in. / 0.79 m |
| Gradeability | 28 % |
| Machine Weight | 5071 lb / 2300.17 kg |
| Horizontal Outreach | 23 ft / 7.01 m |
| Jib – Range of articulation | 89 Degrees |
| Engine Type – Electric | 100Ah 48V Lithium-Ion |
| Machine Height | 6 ft 7 in. / 1.99 m |
| Swing Type | Non-Continuous |
| Platform Dimension B | 2 ft 6 in. / 0.76 m |
| Ground Bearing Pressure – Outriggers | 35.5 psi / 2.49 Kg/cm2 |
- Fits through a standard doorway
- Auto levels on uneven surfaces
- Drive speed control for smooth operation on a variety of terrains
- 500 lb unrestricted platform capacity
- Regenerative valve on telescopic cylinder resulting 50% increase in speed
