GEM®eL XD
GEM®eL XD
Location:
Unit:
Price: Contact for price

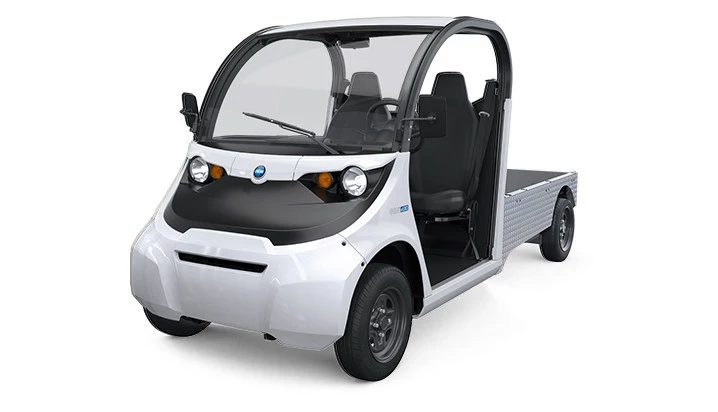

With its sturdy build, generous ground clearance, and 1,400-lb payload capacity, the GEM eL XD is a workhorse. Pick the carrier and bed options that fit the unique demands of your job
- Street-Legal | GEM vehicles are street-legal, which means that you can travel from jobsite to jobsite without worrying about keeping off public roads.
- Sustainable Work | With all-electric power the GEM eL XD is not only good for the environment, it’s good for your bottom line.
- The Right Tools for the Job | The eL XD offers a wide range of options such as ladder racks, tool chests, and a recessed bed that will allow you to tailor your GEM for the job at hand.
- Safety Features | Feel more secure with GEM standard safety features like 3-point seat belts, automotive glass windshield, and LED turn signals.
- Low Cost of Ownership | GEM vehicles have an average cost of $0.03 per mile**, a significantly lower figure than your average truck.
- Work in Comfort | A spacious vehicle with a smooth ride, GEM also offers options like tilt steering, EPS, heater, and defrost so you can focus on the job at hand.
| Capacity | 1415lbs |
| Load Weight |
| Max Lift Height |
| Power | 48V AC Induction Electric |
| Environment |
| Primary Task |
| Industry |
| Model Year |
| Truck Type |
| Meter |
| Upright Lift / Lower Height |
| Upright Type |
| Valve Type |
| Fork Length |
| Tire Type |
| Seat Type |
| Battery Condition |
| Transmission |
| Phases |
| Battery Range | 12-68 miles (19-109 kilometers); dependent on battery type |
|---|---|
| Drive System Type | Direct Front Wheel |
| Fuel System/Battery | Various |
| Horsepower | 8.7 HP (6.5 kW) |
| Top Speed | 25 mph (40 km/h) |
| Box Capacity | 1,100 lbs (499 kg) |
| Estimated Dry Weight | 1,585 lb (719 kg) |
| Ground Clearance | 8 in (20 cm) |
| GVWR | 3,000 lb (1,361 kg) |
| Hitch Towing Rating | Up to 1,100 lb (498 kg), not to exceed GVWR (off-road use only, max Tongue Weight of 150 lb/68 kg) |

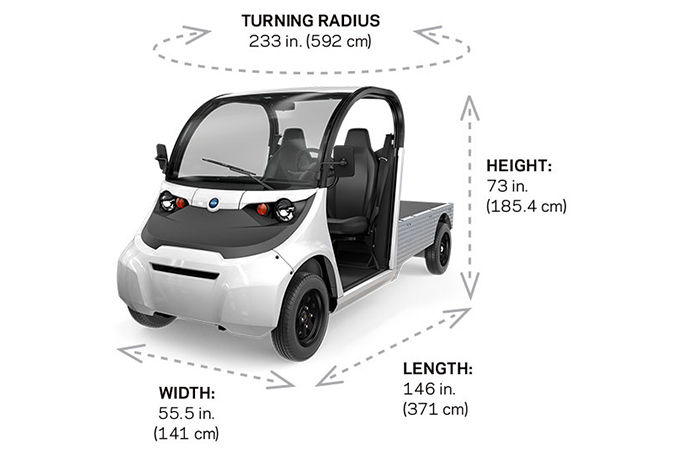

| Overall Vehicle Size (L x W x H) | 146 x 55.5 x 73 in (371 x 141 x 185 cm) |
| Person Capacity | 2 |
| Turning Radius | 233 in (592 cm) |
| Wheelbase | 114 in (289.6 cm) |
| Front/Rear Brakes | Disc/Hydraulic Drum |
| Parking Brake | Hand-Actuated |
| Adjustable Driver Seat | Standard |
| Instrumentation | Integrated Backup Camera, Self-cancelling turn signals, 1 kW onboard charger |
| Lighting | LED headlights and brake lights, dome light |
| Other Standard Features | Bucket seats, safety belts, grab handles, windshield wiper, non-slip flooring, sound emitter |
| Seat Covering | Charcoal Vinyl |
| Tilt Steering | Optional |
| Electronic Power Steering | Optional |
| Front Tires | 13 in. street-rated 155/80 R13 |
| Hubs | Front: Aluminum; Rear: Steel |
| Rear Tires | 13 in. street-rated 155/80 R13 |
| Wheels | Stamped Steel, Alum Option |
| Front Suspension | MacPherson Strut – 5.6 in (14 cm) |
| Rear Suspension | Independent Trailing Arm – 6 in (15 cm) |
- Street-Legal | GEM vehicles are street-legal, which means that you can travel from jobsite to jobsite without worrying about keeping off public roads.
- Sustainable Work | With all-electric power the GEM eL XD is not only good for the environment, it’s good for your bottom line.
- The Right Tools for the Job | The eL XD offers a wide range of options such as ladder racks, tool chests, and a recessed bed that will allow you to tailor your GEM for the job at hand.
- Safety Features | Feel more secure with GEM standard safety features like 3-point seat belts, automotive glass windshield, and LED turn signals.
- Low Cost of Ownership | GEM vehicles have an average cost of $0.03 per mile**, a significantly lower figure than your average truck.
- Work in Comfort | A spacious vehicle with a smooth ride, GEM also offers options like tilt steering, EPS, heater, and defrost so you can focus on the job at hand.
