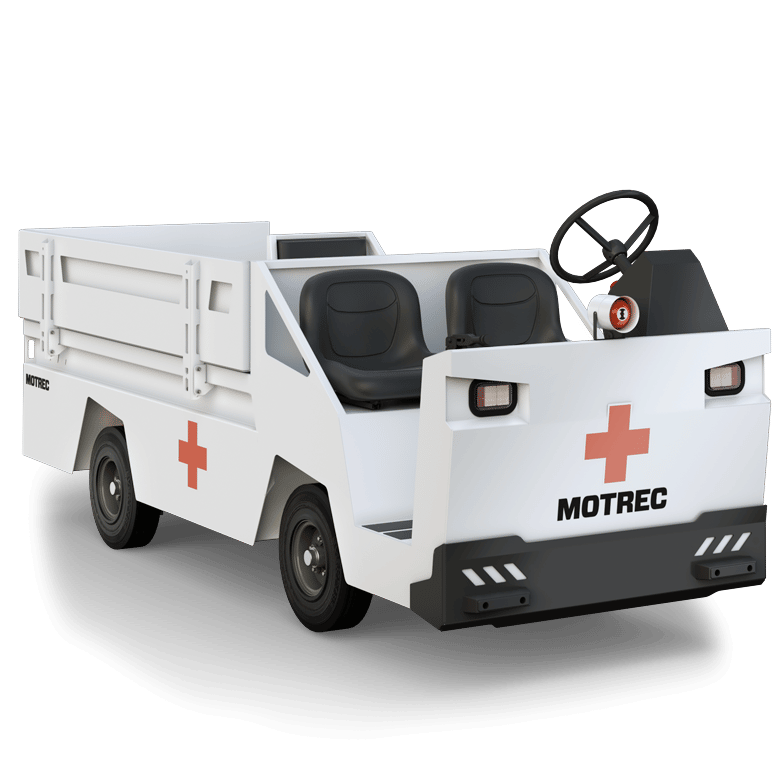

MX-480 Ambulance

Motrec

MX-480 Ambulance

Location:

Unit:

Price: Contact for price

Rescue people anywhere, quickly and safely. With its integrated nurse seat, hinged sides and first aid compartment, the MX-480 Ambulance makes a great turnkey solution. Its short turning radius and impressive maneuverability are ideal for confined settings. The long list of options include electric siren, red strobe light, second storage compartment, multi-level cot and IV pole. This zero-emission vehicle can also be equipped with top, windshield and roll-up sides for all-weather protection. Fully customizable and brandable.

High-efficiency asynchronous AC / Direct Drive motor: Offers better control for full motor performance, as well as higher possible speeds and better torque at low speeds. Maintenance-free brushless electric motor equipped with temperature and speed sensors.
AC controller with sealed connectors paired with multifunction display: Allows for precise speed control for greater safety and vehicle performance. Includes indicators for speed, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Console on steering column: Complete console on steering column to put all controls and displays conveniently right where your fingers and eyes are. Now with a tilted steering column for a more ergonomic and natural driving posture to reduce operator fatigue and strain.

Capacity

Load Weight

Max Lift Height

Power

Environment

Primary Task

Industry

Model Year

Truck Type

Meter

Upright Lift / Lower Height

Upright Type

Attachments

Valve Type

Fork Length

Tire Type

Seat Type

Battery Condition

Transmission

Direct Drive

Phases

Motor	Brushless AC motor, 15 HP Max (9 HP Continuous)
Height	54,5″
Wheel Base	65,5″
Controller	AC Electronic speed controller
Battery	Eight 6V-225AH batteries
Suspension	Dual leaf springs on front and rear
Wheels	5.7×8 LRD pneumatic tires
Body	All-steel unibody construction. Powder Coating.
Deck Length	82″
Indicators	Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
Safety	Deadman seat switch, reverse alarm, horn, automatic parking brake
Accessories	Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator
Width	44,5″
Brakes	Rear hydraulic drum brakes, electromagnetic parking brake with manual hand release, regenerative braking
Length	130″
Voltage	48V
Drive Axle	Helical gear differential
Charger	High-frequency (85-265VAC / 45-65Hz, 1kw), built-in and automatic.
Deck Width	44,5″
Seats	Two bucket seats on slide adjusters
Lights	LED dual headlights & tail/brake lights, dual back-up lights
Steering	Automotive steering wheel, tilted steering column
