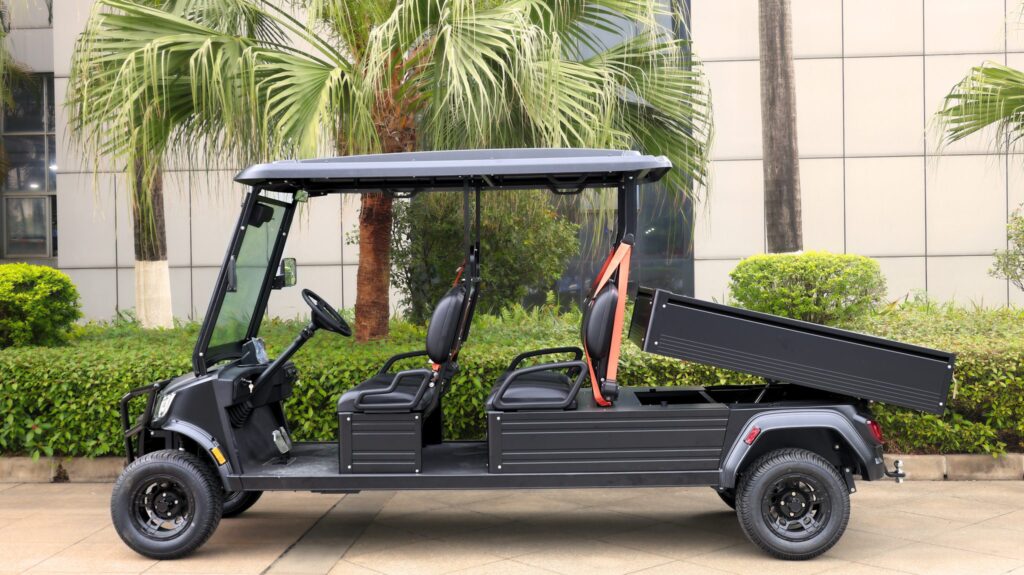

Fusion Utility 4 Medium Bed Electric Cart
What to take the next step?
Comfortable passenger transport meets versatile utility
The Fusion Utility 4 Medium Bed combines comfortable four-passenger capability with hard-working utility with its aluminum dump bed and towing capability. This highly versatile vehicle allows fleets to move the people and gear to the job site in one vehicle or simply allows the option to use it as a people mover in one trip and utility vehicle in the other. Ideal for landscaping, property management, maintenance and tradesmen on job sites, campuses, airports, industrial plants, resorts, zoos and more. Engineered for work, the aluminum bed lifts with the press of a button thanks to its electric hydraulic dump system and the vehicle comes standard with a two-inch receiver for towing. It is also well-equipped with safety and reliability features like three-point seat belts, backup cameras, front brush guards, and a full five-year warranty on our maintenance-free lithium-ion battery. The Fusion Utility 4 Medium Bed is the multipurpose tool in your fleet, reliably and efficiently doing the many jobs your operations need done.
Specifications
- Motor: 5KW / 6.8 HP
- Controller: 450 Amp Programmable
- Drivetrain: 16:1 High Speed Rear Axle
- Speed: 19 mph (30.4 Km/H)/ 25 mph (40.2 Km/H)
- Battery: 51.2V 105Ah Marxon® Lithium-Ion Pack With Heating Module
- Charger: Onboard - 20 Amp 120V
- Range: 37 mi (60km)
- Battery Level Indicator: Digital Touch Screen
- Chassis: E-Coat And Powder Coated Steel Frame
- Suspension: Heavy Duty Coil Over Shocks
- Ground Clearance: 6.5” (16.5 cm)
- Brakes: 4 Wheel Premium Hydraulic Disc Brakes
- Park Brakes: Electro Magnetic, Automatically Actuated Once Vehicle Is Stopped, Released When Accelerator Peddle Is Engaged
- Wheels And Tires: Black Aluminum, 225/55-12
- Turning Radius: 236" (600 cm)
- Vehicle Capacity: 4 People
- Overall Dimensions: 165" x 48" x 78" (420cm x 122cm x 200cm)
- Utility Bed Dimensions: 59" x 45" x 12" (150cm x 115cm x 31cm)
- Utility Bed: Aluminum Dump Bed with Electric Hydraulic Actuated Dump
- Utility Bed Capacity: 661 lbs (299.9 kg)
- Curb Weight: 1,466 lbs (664.8 kg)
- Payload: 1,410 lbs (639.6 kg)
- Tow Capacity: 2,000 Lbs (907.2 kg)
- Electronics: Digital Touch Screen Speedometer, Hazard Switch, USB Power Switch
- Body Color: Matte Black
- Seats: Black Bolstered Seats
- Warranty: 2-Year Full Car / 5-Year Full Battery
Additional Information
Safety is Standard
- Safety Orange 3-Point Seat Belts
- Pedestrian Noise Emitter + Back-Up Alarm & Camera
- Side & Center Mounted Rearview Mirrors
- DOT Glass Windshield With Wiper
Reliability is Standard
- 5.3 kWh Marxon®Lithium-Ion with Full 5-Year Warranty
-
Bluetooth Diagnostic App
-
Rugged Front Bumper
-
Powder And E-Coat Frame
Utility is Standard
-
Aluminum Cargo Bed With Tailgate
-
Electric Hydraulic Dumping Bed
-
Standard 2” Receiver
- Tool Holder & Ladder Rack Available
Fusion vehicles are well-equipped with safety, reliability, and utility features designed to meet the needs of commercial and government fleet operators.
