Big dump-bed and big payload for big jobs

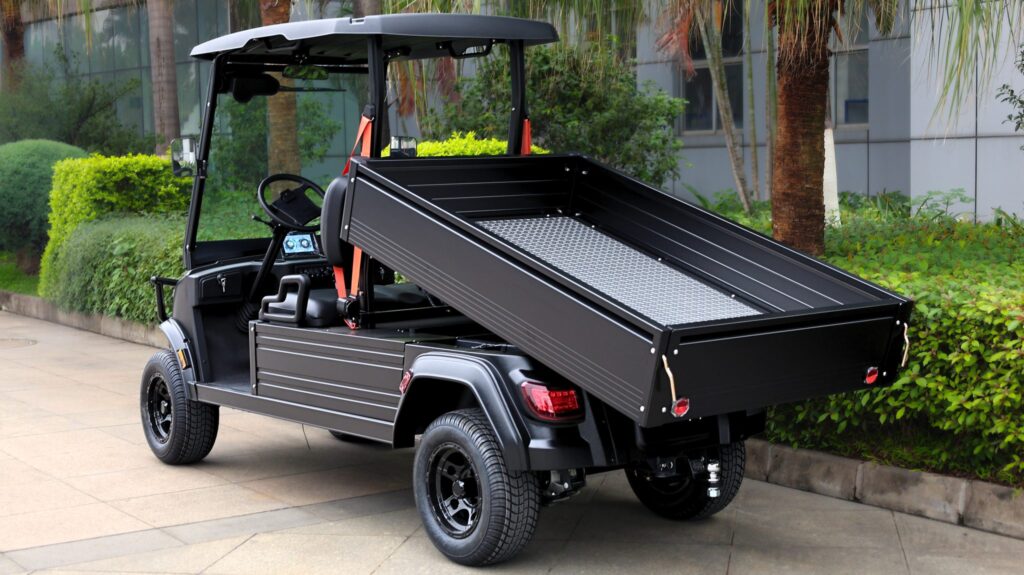

The Fusion Utility Long Bed is an extremely capable work vehicle designed to move two people and more than 1,000 pounds of tools, equipment and other payload. The large aluminum bed is nearly 4 feet by 6 feet and lifts with the press of a button thanks to its electric hydraulic dump system. This highly reliable solution is ideal for landscaping, property management, maintenance and tradesmen on job sites, campuses, airports, industrial plants, resorts, zoos and more. Designed for work, it comes standard with safety and utility features like three-point seat belts, backup cameras, front brush guards, a full five-year warranty on our lithium ion battery and a two-inch receiver. The big payload long bed utility vehicle is ready to be put to work in your fleet.
Specifications
- Motor: 5KW / 6.8 HP
- Controller: 450 Amp Programmable
- Drivetrain: 16:1 High Speed Rear Axle
- Speed: 19 mph (30.4 Km/H)/ 25 mph (40.2 Km/H)
- Battery: 51.2V 105Ah Marxon® Lithium-Ion Pack With Heating Module
- Charger: Onboard - 20 Amp 120V
- Range: 31 mi (50km)
- Battery Level Indicator: Digital Touch Screen
- Chassis: E-Coat And Powder Coated Steel Frame
- Suspension: Heavy Duty Coil Over Shocks
- Ground Clearance: 6.5” (16.5 cm)
- Brakes: 4 Wheel Premium Hydraulic Disc Brakes
- Park Brakes: Electro Magnetic, Automatically Actuated Once Vehicle Is Stopped, Released When Accelerator Peddle Is Engaged
- Wheels And Tires: Black Aluminum, 225/55-12
- Turning Radius: 177" (450 cm)
- Vehicle Capacity: 2 People
- Overall Dimensions: 150" x 48" x 78" (380cm x 121.9cm x 200.6cm)
- Utility Bed Dimensions: 71" x 46" x 12" (180.3cm x 116.8cm x 30.5cm)
- Utility Bed: Aluminum Dump Bed with Electric Hydraulic Actuated Dump
- Utility Bed Capacity: 1,102 lbs (499.8 kg)
- Curb Weight: 1,322 lbs (599.5 kg)
- Payload: 1,477 lbs (669.6 kg)
- Tow Capacity: 2,000 Lbs (907.2 kg)
- Electronics: Digital Touch Screen Speedometer, Hazard Switch, USB Power Switch
- Body Color: Matte Black
- Seats: Black Bolstered Seats
- Warranty: 2-Year Full Car / 5-Year Full Battery
Additional Information
Safety is Standard
- Safety Orange 3-Point Seat Belts
- Pedestrian Noise Emitter + Back-Up Alarm & Camera
- Side & Center Mounted Rearview Mirrors
- DOT Glass Windshield With Wiper
Reliability is Standard
- 5.3 kWh Marxon®Lithium-Ion with Full 5-Year Warranty
-
Bluetooth Diagnostic App
-
Rugged Front Bumper
-
Powder And E-Coat Frame
Utility is Standard
-
Aluminum Cargo Bed With Tailgate
-
Electric Hydraulic Dumping Bed
-
Standard 2” Receiver
- Tool Holder & Ladder Rack Available
Fusion vehicles are well-equipped with safety, reliability, and utility features designed to meet the needs of commercial and government fleet operators.
